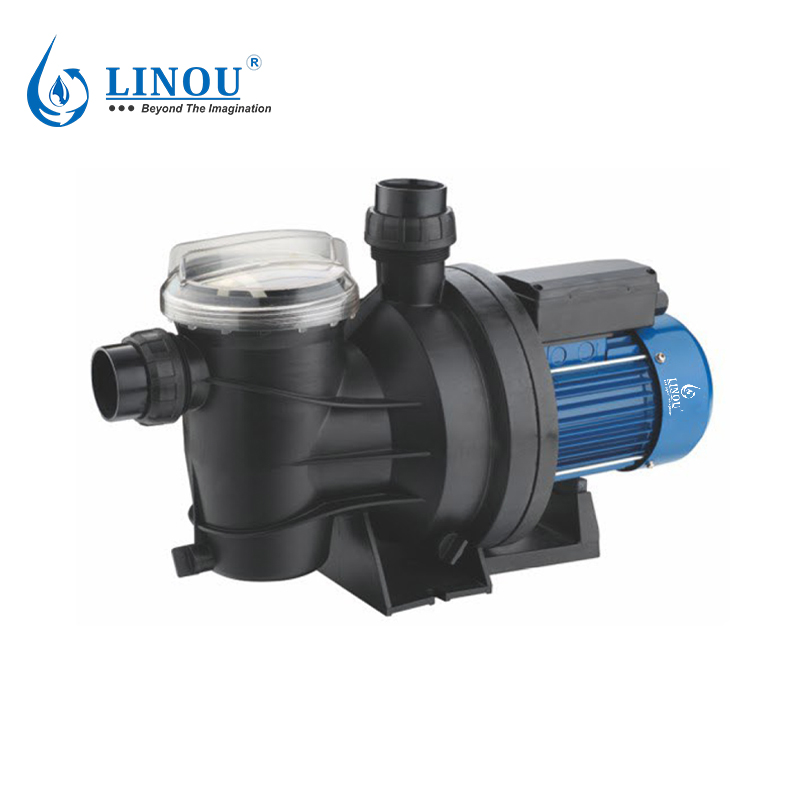

Swimming Pool Pump
VCLP
Applications
● Filter centrifugal pumps are designed for cleaning swimming pool, They are suitable to transfer high volumes of water (not exceeding 45°C) against low head.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request
Operating conditions
● Liquid temperature up to 45°C
● Ambient temperature up to 40°C
● Total suction lift up to 5m
Component Construction
● Pump body: Techno-polymer
● Pump support: Aluminum, Cast iron for HFC- 1500/2200
● Motor housing: Aluminum, Alloy for HFC-550/750
● Impeller: Techno- polymer
● Motor shaft: AISI304 SS
● Mechanical seal: SIC/Graphite
| Junhe Model | Ⓐ VCLP5001 | Ⓑ VCLP5501 | Ⓒ VCLP6001 |
| Rated power | 500W | 550W | 600W |
| Maximum lift | 10m | 11m | 12.5m |
| Maximum flow rate | 9000l/h | 10000l/h | 11000l/h |
| Maximum pressure | 1.0bar | 1.1bar | 1.25bar |
| Maximum Noise (dB) | 80 | 80 | 80 |
| Connection diameter | G1-1/2" | G1-1/2” | G1-1/2" |
| Cable specification | HO5RN-F3G0.75mm2 | HO5RN-F3G0.75mm2 | HO5RN-F3G0.75mm2 |
| Number of impeller | 1PC | 1PC | 1PC |
| Individual gift box size | 45.5x23.0x27.0cm | 45.5x23.0x27.0cm | 45.5x23.0x27.0cm |
| Gross weight per piece | 6.8kg | 7.2kg | 7.5kg |
| Quantity /20' GP | 990pcs | 990pcs | 990pcs |
| Junhe Model | Ⓐ VCLP5001 | Ⓑ VCLP5501 |
| Rated power | 800W | 1200W |
| Maximum lift | 13.5m | 16m |
| Maximum flow rate | 15000l/h | 23000l/h |
| Maximum pressure | 1.35bar | 1.6bar |
| Maximum Noise (dB) | 80 | 80 |
| Connection diameter | G2-1/4" | G2-1/4” |
| Cable specification | HO7RN-F3G1.0mm2 | HO7RN-F3G1.0mm2 |
| Number of impeller | 1PC | 1PC |
| Individual gift box size | 56.0x29.5x35.5cm | 56.0x29.5x35.5cm |
| Gross weight per piece | 10.4kg | 12.4kg |
| Quantity /20' GP | 476pcs | 476pcs |

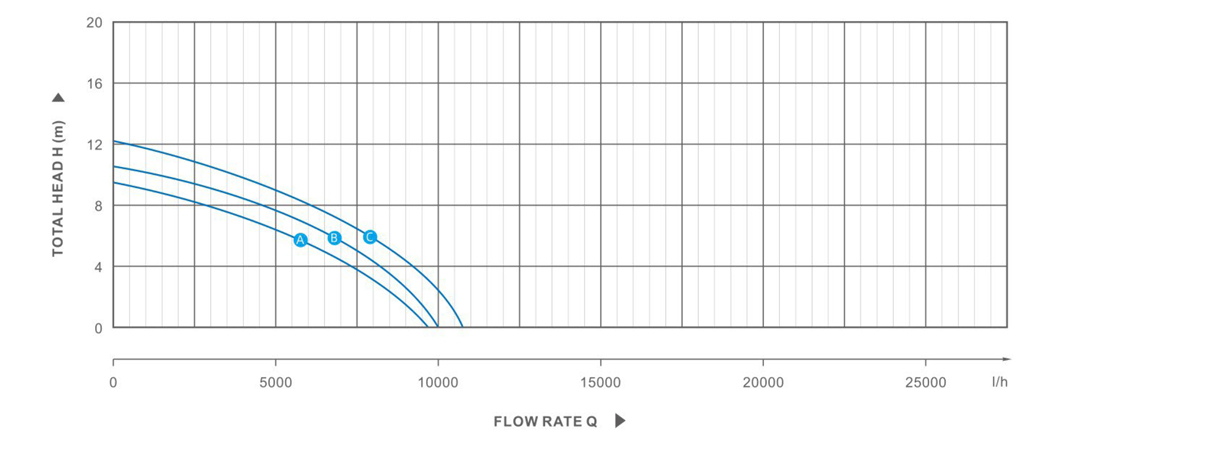

n=2850 rpm/min

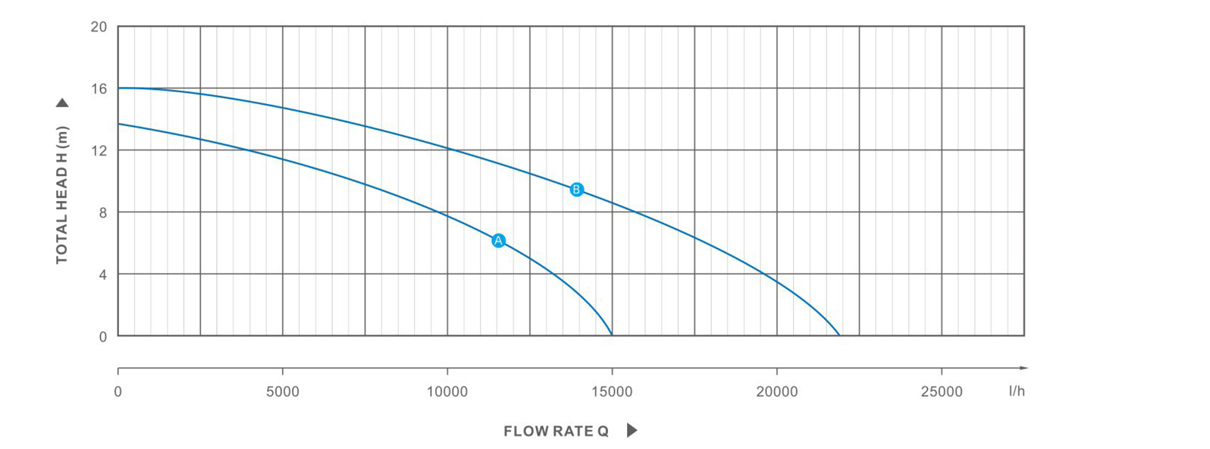

n=2850 rpm/min
