Clean Water Centrifuge Pump
VMF
Applications
● Suitable for use in civil and agricultural applications.
● The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request
Operating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 8m

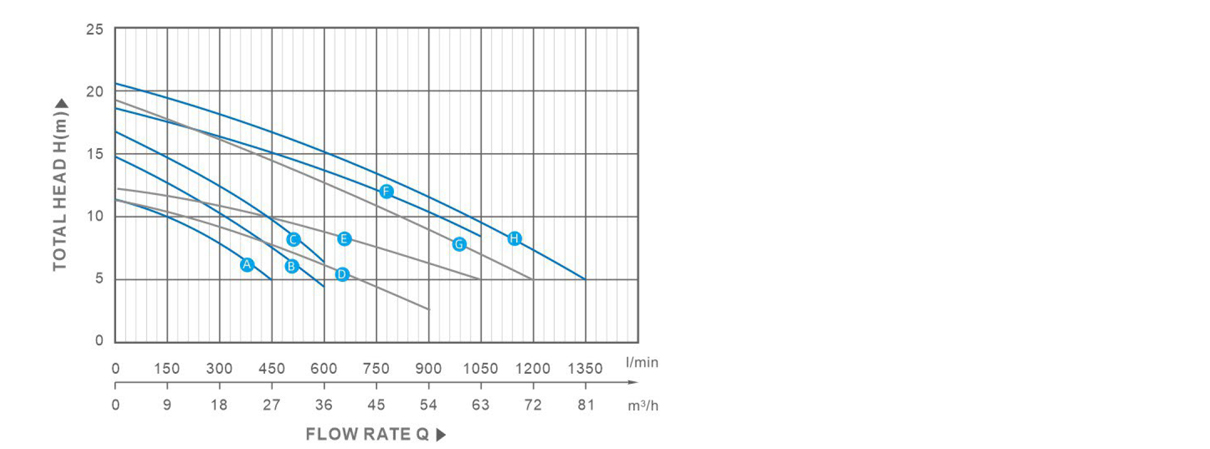

| Model | Import/export | power | Flow | |||||||||||
| Q(m³/h) | 0 | 9 | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 81 | ||||
| Single phase | Inch | KW | HP | (L/min) | 0 | 150 | 300 | 450 | 600 | 750 | 900 | 1050 | 1200 | 1350 |
| Ⓐ VMF-128A | 2"x2" | 0.75 | 1 | H(m) | 12 | 10.5 | 8.5 | 5 | - | - | - | - | - | - |
| Ⓑ VMF-129B | 2"x2" | 1.1 | 1.5 | 15 | 14 | 12 | 8.5 | 4 | - | - | - | - | - | |
| Ⓒ VMF-129A | 2"x2" | 1.5 | 2 | 17 | 15.5 | 14 | 11 | 7 | - | - | - | - | - | |
| Ⓓ VMF-130C | 3"x3" | 1.1 | 1.5 | 12 | 11.5 | 10.5 | 9 | 6.5 | 4 | 2 | - | - | - | |
| Ⓔ VMF-130B | 3"x3" | 1.5 | 2 | 13.5 | 12.5 | 11.5 | 10 | 7.5 | 5 | 3 | 5 | - | - | |
| Ⓕ VMF-130A | 3"x3" | 2.2 | 3 | 18 | 17 | 16 | 14.5 | 13 | 11 | 8 | 8 | - | - | |
| Ⓖ VMF-131B | 3"x3" | 3 | 4 | 19 | 18 | 17 | 16 | 15 | 13 | 10.5 | 11 | 5 | - | |
| Ⓗ VMF-131A | 3"x3" | 4 | 5.5 | 21 | 20.5 | 19.5 | 18 | 17 | 15.5 | 13 | 10 | 8 | 5 | |
n=2850 rpm/min
| Model | Import/export | N.W | Length x width x height |
| Inch | Kg | mm | |
| Ⓐ | 2"x2" | 18.5 | 370×225×295 |
| Ⓑ | 2"x2" | 22 | 425×230×295 |
| Ⓒ | 2"x2" | 23.5 | 425×230×295 |
| Ⓓ | 3"x3" | 28.5 | 465×310×345 |
| Ⓔ | 3"x3" | 30 | 465×310×345 |
| Ⓕ | 3"x3" | 35 | 520×300×350 |
| Ⓖ | 3"x3" | 38 | 560×310×350 |
| Ⓗ | 3"x3" | 40 | 560×310×350 |

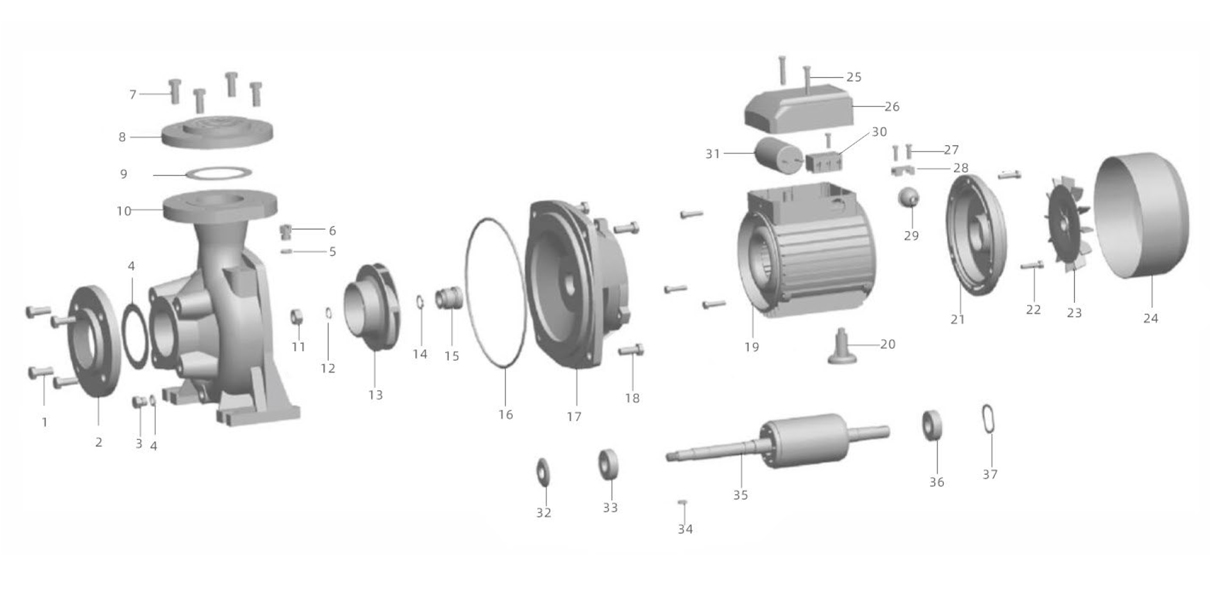

| NO. | Parts and components | Materials |
| 1 | bolt | steel |
| 2 | Suction flange | iron |
| 3 | Drain plug | Orichalcum |
| 4 | Spring washer | rubber |
| 5 | An "O" ring | rubber |
| 6 | Injection screw | Orichalcum |
| 7 | bolt | steel |
| 8 | Delivery flange | iron |
| 9 | Conveying gasket | rubber |
| 10 | Pump casing | iron |
| 11 | nut | steel |
| 12 | Spring washer | steel |
| 13 | impeller | Brass /PPO |
| 14 | circlip | steel |
| 15 | Mechanical seal | Ceramic-graphite |
| 16 | An "O" ring | rubber |
| 17 | Pump support | iron |
| 18 | bolt | steel |
| 19 | Housing with wound stator | Cast aluminium |
| 20 | Stand | Acrylonitrile-butadiene-styrene copolymer plastics |
| 21 | Drive cover | iron |
| 22 | bolt | steel |
| 23 | fan | Polyformaldehyde plastic |
| 24 | Fan guard | steel |
| 25 | bolt | steel |
| 26 | Terminal cap | Acrylonitrile-butadiene-styrene copolymer plastics |
| 27 | screw | steel |
| 28 | Cable clamp | Acrylonitrile-butadiene-styrene copolymer plastics |
| 29 | fairlead | rubber |
| 30 | Wiring board | Assembly |
| 31 | condenser | Assembly |
| 32 | Retaining ring | rubber |
| 33 | bearing | Assembly |
| 34 | Key | steel |
| 35 | rotor | Assembly |
| 36 | bearing | Assembly |
| 37 | Split ring | steel |
