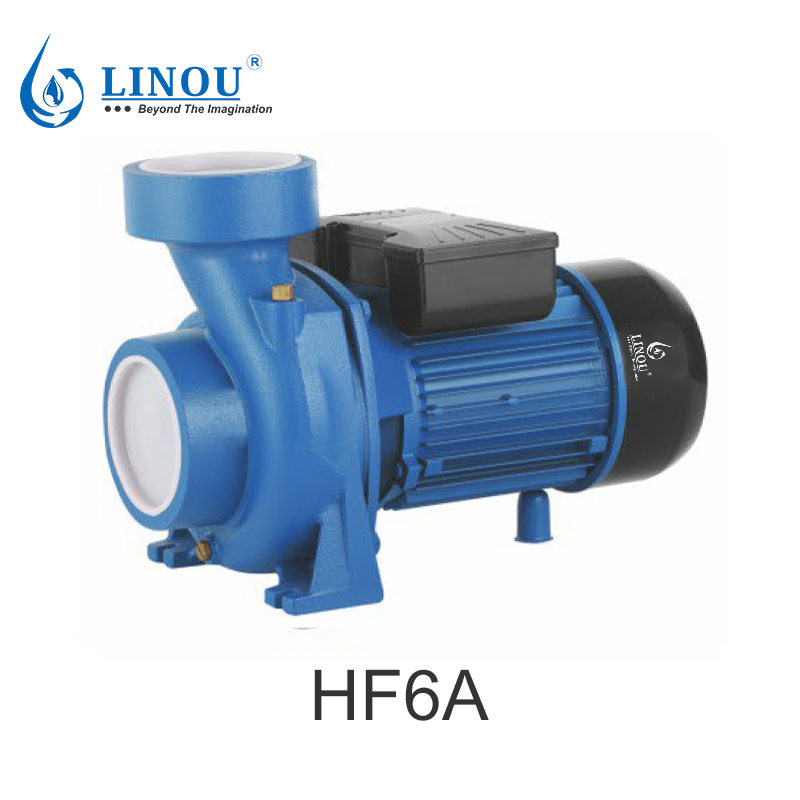

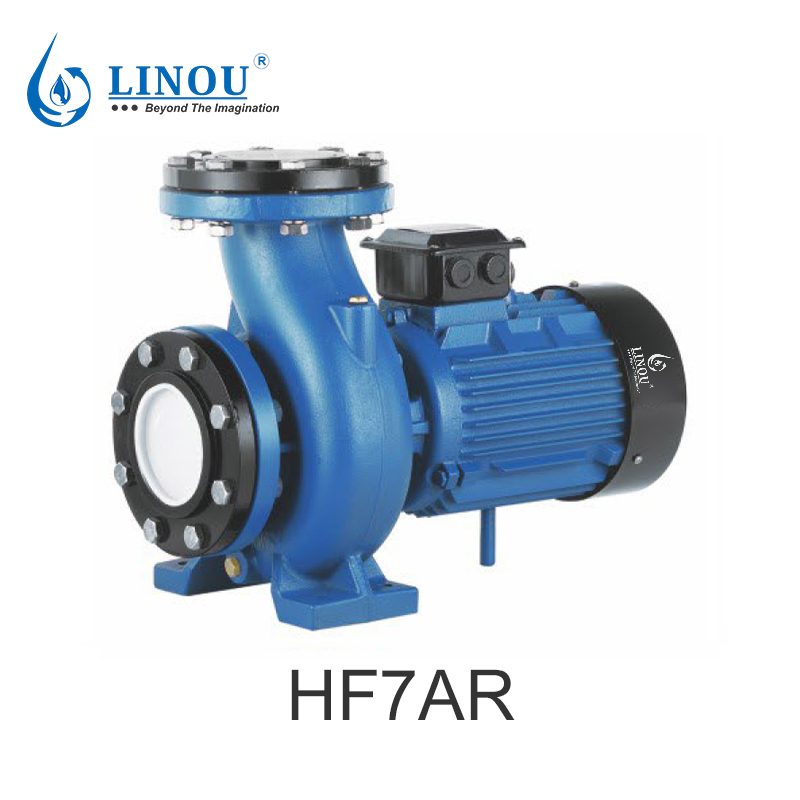

Clean Water Centrifuge Pump
HF
Applications
● Suitable for use in civil and agricultural applications.
● The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two- pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request
Operating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 8m
Component Construction
● Pump body: Cast iron
● Pump support: Cast iron
● Motor housing: Aluminum
● Impeller: Brass
● Motor shaft: Carbon steel, AISI304 SS if request
● Mechanical seal: SIC/Graphite

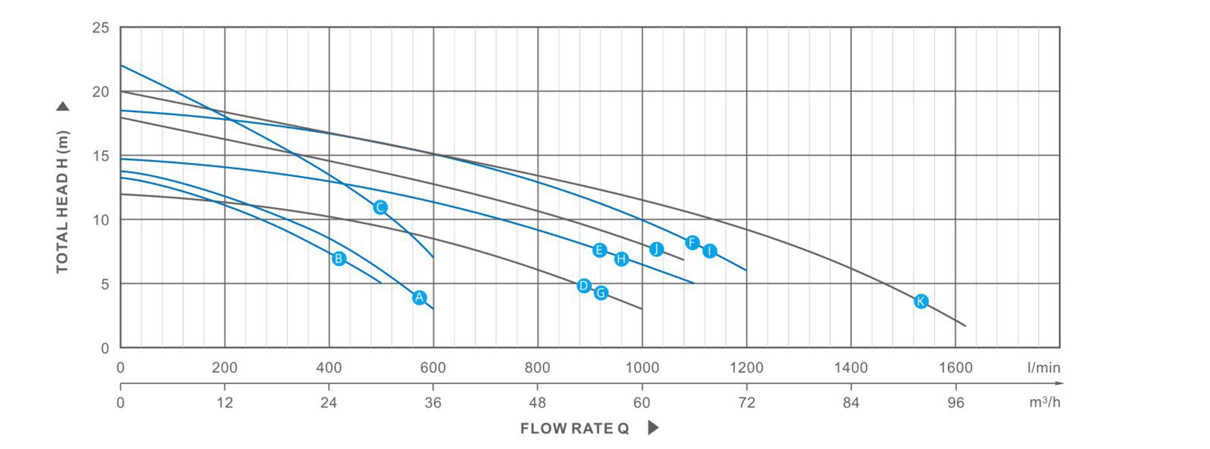

| Model | Import/export | power | Flow | ||||||||||||||||||
| Q(m³/h) | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 108 | ||||
| Inch | KW | HP | (L/min) | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1800 | |
| Ⓐ HF 5B | 2"x2" | 0.75 | 1 | H(m) | 13.7 | 13.2 | 13 | 12.5 | 11.6 | 10.5 | 9.2 | 8 | 5 | - | - | - | - | - | - | - | - |
| Ⓑ HF 5A | 2"x2" | 1.1 | 1.5 | 14.5 | 13.8 | 13.5 | 13.2 | 12.6 | 11.5 | 10.5 | 9.2 | 6.5 | 3 | - | - | - | - | - | - | - | |
| Ⓒ HF 5AM | 2"x2" | 1.5 | 2 | 22.5 | 22 | 21.5 | 21 | 20 | 18.5 | 16.6 | 14.5 | 10 | 7 | - | - | - | - | - | - | - | |
| Ⓓ HF/6C | 3"x3" | 1.1 | 1.5 | - | - | 11.9 | 11.7 | 11.5 | 11.3 | 11 | 10.7 | 10.2 | 9 | 8 | 6.7 | 5 | 3 | - | - | - | |
| Ⓔ HF/6B | 3"x3" | 1.5 | 2 | - | - | 14.7 | 14.5 | 14.2 | 14 | 13.5 | 13.5 | 13 | 12 | 11 | 9.7 | 8.2 | 6.7 | 5 | - | - | |
| Ⓕ HF/6A | 3"x3" | 2.2 | 3 | - | - | 18.5 | 18.1 | 18 | 17.8 | 17.5 | 17.2 | 16.8 | 16 | 15 | 13.8 | 12.2 | 10.5 | 8.3 | 6 | - | |
| Ⓖ HF/6CR | 4"x4" | 1.1 | 1.5 | - | - | 11.9 | 11.7 | 11.5 | 11.3 | 11 | 10.7 | 10.2 | 9 | 8 | 6.4 | 5 | 3 | - | - | - | |
| Ⓗ HF/6BR | 4"x4" | 1.5 | 2 | - | - | 14.7 | 14.5 | 14.2 | 14 | 13.7 | 13.5 | 13 | 12 | 11 | 9.7 | 8.2 | 6.7 | 5 | - | - | |
| ⓛ HF/6AR | 4"x4" | 2.2 | 3 | - | - | 18.5 | 18.1 | 18 | 17.8 | 17.5 | 17.2 | 16.8 | 16 | 15 | 13.8 | 12.2 | 10.5 | 8.3 | 6 | - | |
| Ⓙ HF/7BR | 4"x4" | 3.0 | 4 | - | - | 21.5 | 21 | 18.7 | 18.6 | 18.5 | 18.4 | 17.9 | 17 | 16.2 | 15 | 13.8 | 12.2 | 10.3 | 8.2 | - | |
| Ⓚ HF/7AR | 4"x4" | 4.0 | 5.5 | - | - | 24 | 23.5 | 23 | 22.5 | 22 | 21 | 20 | 19.5 | 19 | 18 | 17.3 | 16 | 15 | 13.5 | 2 | |
n=2850 rpm/min
| Model | Import/export | N.W | Length x width x height |
| Inch | Kg | mm | |
| Ⓐ | 1"x1" | 8.5 | 270×190×240 |
| Ⓑ | 1"x1" | 11.5 | 320×200×255 |
| Ⓒ | 1"x1" | 13.5 | 320×215×270 |
| Ⓓ | 1"x1" | 20 | 380×265×325 |
| Ⓔ | 1"x1" | 21 | 380×265×325 |
| Ⓕ | 1"x1" | 22 | 380×265×325 |
| Ⓖ | 1"x1" | 8.5 | 270×190×240 |
| Ⓗ | 1"x1" | 11.5 | 320×200×255 |
| ⓛ | 1"x1" | 13.5 | 320×215×270 |
| Ⓙ | 1"x1" | 20 | 380×265×325 |
| Ⓚ | 1"x1" | 21 | 380×265×325 |
