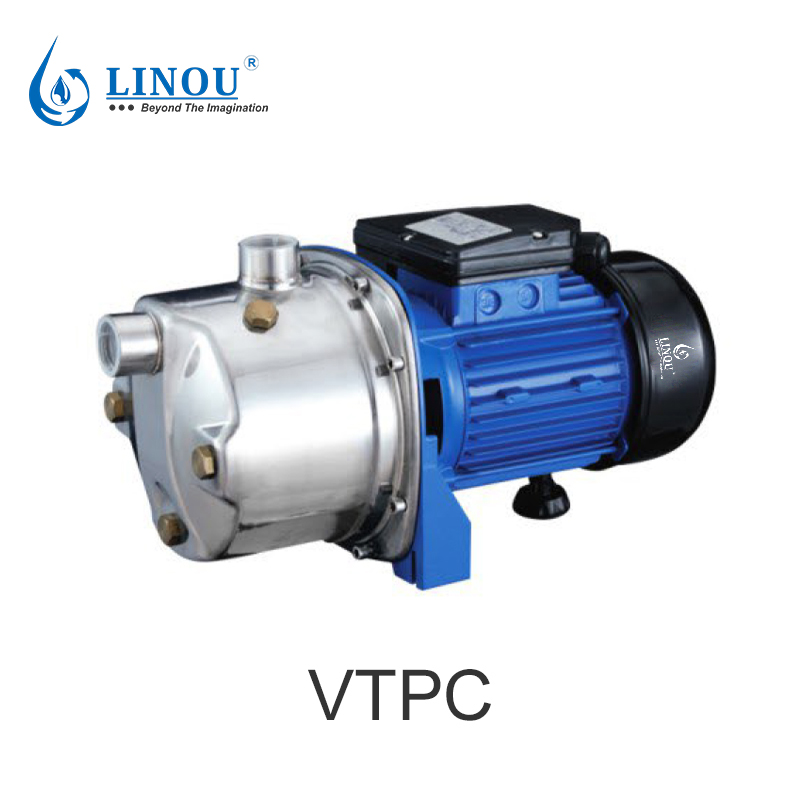

Clean Water Centrifugal Jet Pump
VTP
Applications
● Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
● The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request
Operating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m
Component Construction
● Pump body: AISI304 SS
● Pump support: Aluminum
● Motor housing: Aluminum
● Impeller: Brass, AISI304 SS if request
● Diffuser: Noryl
● Motor shaft: AISI304 SS
● Mechanical seal: SIC/Graphite

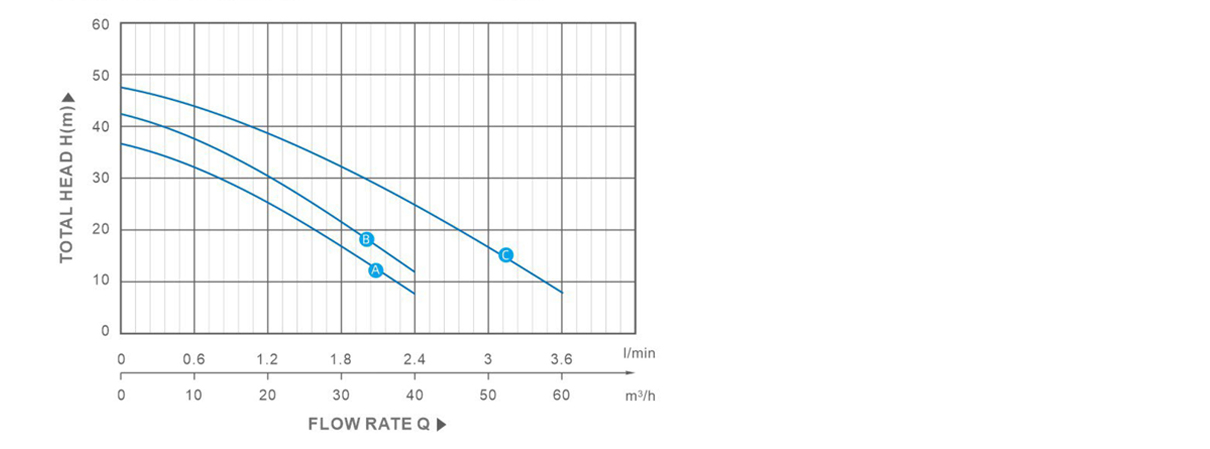

| Model | Import/export | power | Flow | |||||||
| Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | ||||
| Inch | KW | HP | (L/min) | 15 | 25 | 35 | 40 | 50 | 60 | |
| Ⓐ VTP40 VTPC40 | 1"x1" | 0.4 | 0.5 | H(m) | 36 | 26 | 20 | 16 | 7 | - |
| Ⓑ VTP60 VTPC60 | 1"x1" | 0.6 | 0.8 | 42 | 32 | 26 | 20 | 12 | - | |
| Ⓒ VTP75 VTPC75 | 1"x1" | 0.75 | 1 | 47 | 38 | 31.5 | 28.5 | 24 | 9 | |
n=2850 rpm/min
| Model | Import/export | N.W | LxWxH |
| Inch | Kg | mm | |
| Ⓐ | 1"x1" | 7 | 410×220×235 |
| Ⓑ | 1"x1" | 7.5 | 410×220×235 |
| Ⓒ | 1"x1" | 8.5 | 410×220×235 |
| NO. | Parts and components | Materials |
| 1 | Drain plug | steel |
| 2 | An "O" ring | rubber |
| 3 | Drain plug | steel |
| 4 | Pump casing | steel |
| 5 | An "O" ring | rubber |
| 6 | Venturi pipe | PPO |
| 7 | An "O" ring | rubber |
| 8 | diffuser | PPO |
| 9 | nut | steel |
| 10 | Spring washer | steel |
| 11 | impeller | Steel/Brass |
| 12 | Mechanical seal | Ceramic-graphite |
| 13 | An "O" ring | rubber |
| 14 | Pump case cover | steel |
| 15 | Pump support | Cast aluminium |
| 16 | Housing with wound stator | Cast aluminium |
| 17 | Stand | Acrylonitrile-butadiene-styrene copolymer plastics |
| 18 | Drive cover | iron |
| 19 | Lever | steel |
| 20 | fan | Polyformaldehyde plastic |
| 21 | Fan guard | steel |
| 22 | screw | steel |
| 23 | fairlead | steel |
| 24 | nut | Assembly |
| 25 | screw | steel |
| 26 | Cable clamp | Acrylonitrile-butadiene-styrene copolymer plastics |
| 27 | fairlead | rubber |
| 28 | nut | Acrylonitrile-butadiene-styrene copolymer plastics |
| 29 | Terminal cap | Acrylonitrile-butadiene-styrene copolymer plastics |
| 30 | condenser | Assembly |
| 31 | Junction box | Acrylonitrile-butadiene-styrene copolymer plastics |
| 32 | bearing | Assembly |
| 33 | Key | steel |
| 34 | rotor | Assembly |
| 35 | bearing | Assembly |
| 36 | Split ring | steel |
