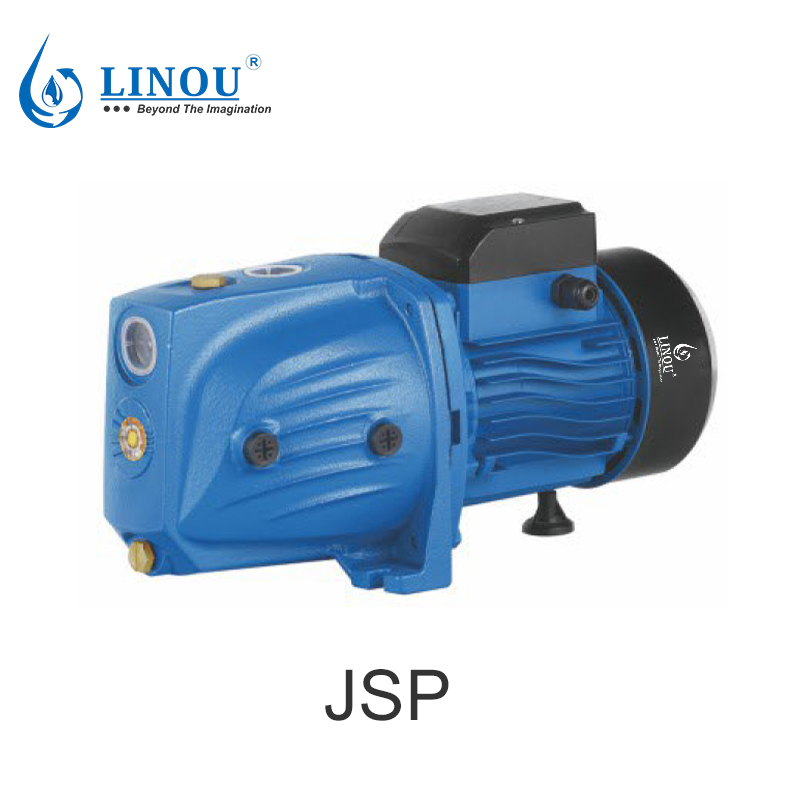

Clean Water Centrifugal Jet Pump
JSW/JSP
Applications
● Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
● The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
● The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request
Operating conditions
● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m
Product Introduction
The Clean Water Jet Pump JSW/JSP is a reliable and efficient water pumping solution. It is equipped with a two-pole induction motor that runs at 2850 revolutions per minute, providing powerful performance. With insulation class B and protection IP44, it offers durability and safety. The pump is designed for continuous service (S1), ensuring long-lasting operation. For single-phase models, a thermal protector is included for added safety. It is available in single-phase 220V/50Hz, and can also be customized to 60Hz upon request. For three-phase applications, it comes in 380V/50Hz and can be adjusted to 60Hz if needed. This jet pump is ideal for various clean water applications, delivering consistent and reliable water flow.

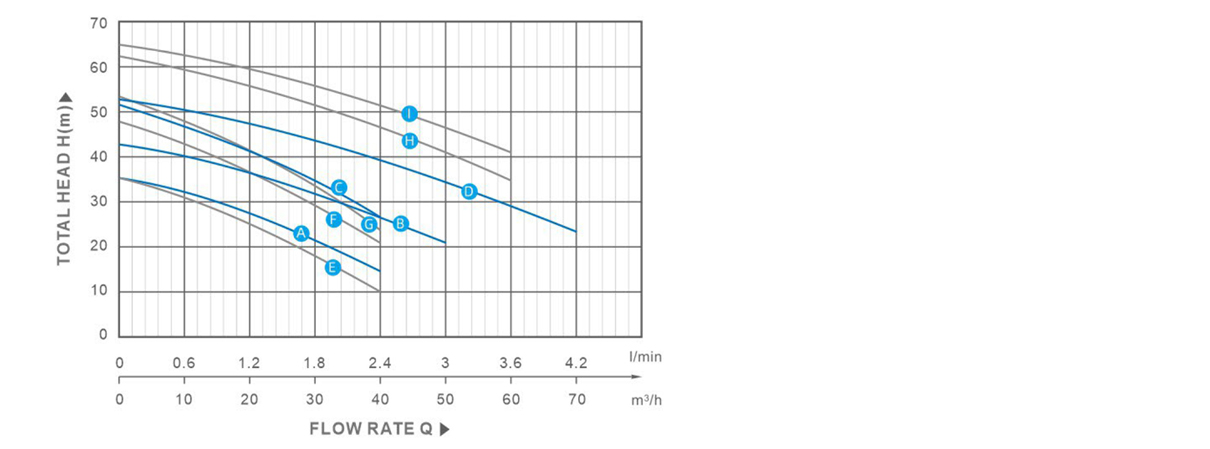

| Model | Import/export | power | Flow | |||||||||
| Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | ||||
| Inch | KW | HP | (L/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| Ⓐ JSW-6M | 1"x1" | 0.37 | 0.5 | H(m) | 35 | 28 | 22 | 18 | 15 | - | - | - |
| Ⓑ JSW-10M | 1"x1" | 0.75 | 1 | 43 | 38 | 31.5 | 27 | 23.5 | 21 | - | - | |
| Ⓒ JSW-10H | 1"x1" | 0.75 | 1 | 51 | 42 | 35 | 30 | 27 | - | - | - | |
| Ⓓ JSW-15M | 1"x1" | 1.1 | 1.5 | 52 | 48 | 42.5 | 38 | 34 | 30 | 27 | 23.5 | |
| Ⓔ JSP-60 | 1"x1" | 0.37 | 0.5 | 35 | 29 | 20 | 13 | 10 | - | - | - | |
| Ⓕ JSP-80 | 1"x1" | 0.55 | 0.75 | 48 | 42 | 30 | 25.5 | 21 | - | - | - | |
| Ⓖ JSP-100 | 1"x1" | 0.75 | 1 | 53 | 46 | 38 | 30 | 24.5 | - | - | - | |
| Ⓗ JSP-150 | 1 1/4"x1" | 1.1 | 1.5 | 61 | 54 | 49 | 44.5 | 41 | 38 | 35.5 | - | |
| ⓛ JSP-200 | 1 1/4"x1" | 1.5 | 2 | 65 | 59 | 53.5 | 49.5 | 46 | 43 | 41 | - | |
n=2850 rpm/min
| Model | Import/export | N.W | Length x width x height |
| Inch | Kg | mm | |
| Ⓐ | 1"x1" | 8.5 | 380×180×205 |
| Ⓑ | 1"x1" | 14 | 445×210×235 |
| Ⓒ | 1"x1" | 14 | 445×210×235 |
| Ⓓ | 1"x1" | 18 | 460×210×235 |
| Ⓔ | 1"x1" | 13 | 460×210×230 |
| Ⓕ | 1"x1" | 14 | 460×210×230 |
| Ⓖ | 1"x1" | 15 | 460×210×230 |
| Ⓗ | 1 1/4"x1" | 25 | 520×235×270 |
| ⓛ | 1 1/4"x1" | 26 | 520×235×270 |

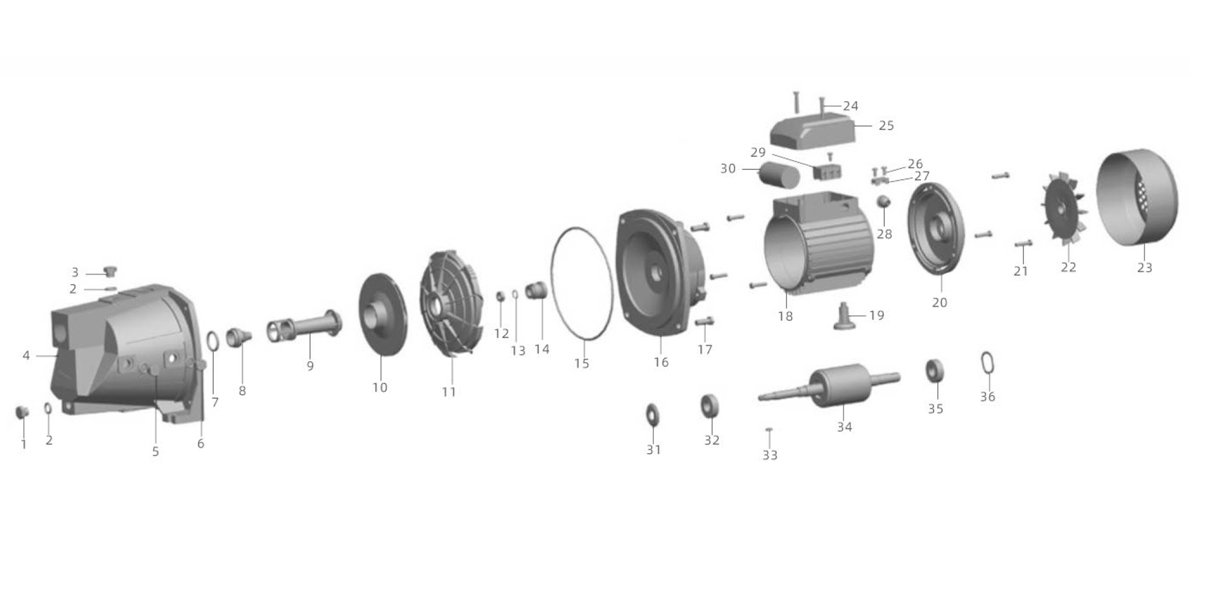

| NO. | Parts and components | Materials |
| 1 | Drain plug | Orichalcum |
| 2 | An "O" ring | rubber |
| 3 | Injection screw | Orichalcum |
| 4 | Pump casing | iron |
| 5 | Meter plug | Orichalcum |
| 6 | Switch plug | Orichalcum |
| 7 | An "O" ring | rubber |
| 8 | Pipe orifice | PPO |
| 9 | Venturi pipe | PPO |
| 10 | impeller | Orichalcum |
| 11 | diffuser | PPO |
| 12 | nut | steel |
| 13 | Spring washer | steel |
| 14 | Mechanical seal | Ceramic-graphite |
| 15 | An "O" ring | rubber |
| 16 | Pump support | iron |
| 17 | bolt | steel |
| 18 | Housing with wound stator | Cast aluminium |
| 19 | Stand | Acrylonitrile-butadiene-styrene copolymer plastics |
| 20 | Drive cover | iron |
| 21 | bolt | steel |
| 22 | fan | Polyformaldehyde plastic |
| 23 | Fan guard | steel |
| 24 | bolt | steel |
| 25 | Terminal cap | Acrylonitrile-butadiene-styrene copolymer plastics |
| 26 | screw | steel |
| 27 | Cable clamp | Acrylonitrile-butadiene-styrene copolymer plastics |
| 28 | fairlead | rubber |
| 29 | Wiring board | Assembly |
| 30 | condenser | Assembly |
| 31 | Retaining ring | rubber |
| 32 | bearing | Assembly |
| 33 | Key | steel |
| 34 | rotor | Assembly |
| 35 | bearing | Assembly |
| 36 | Split ring | steel |
