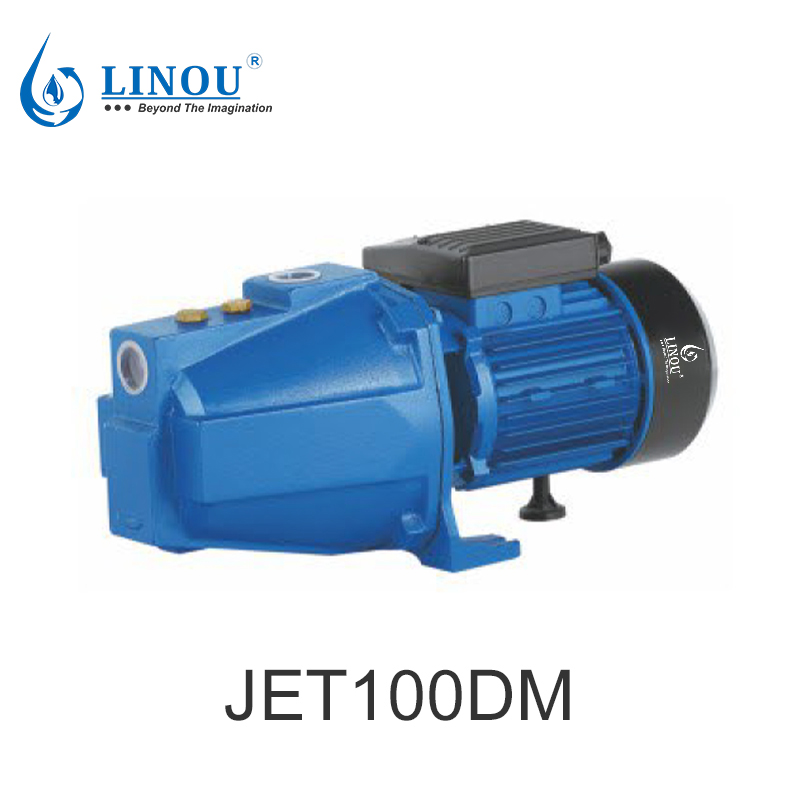

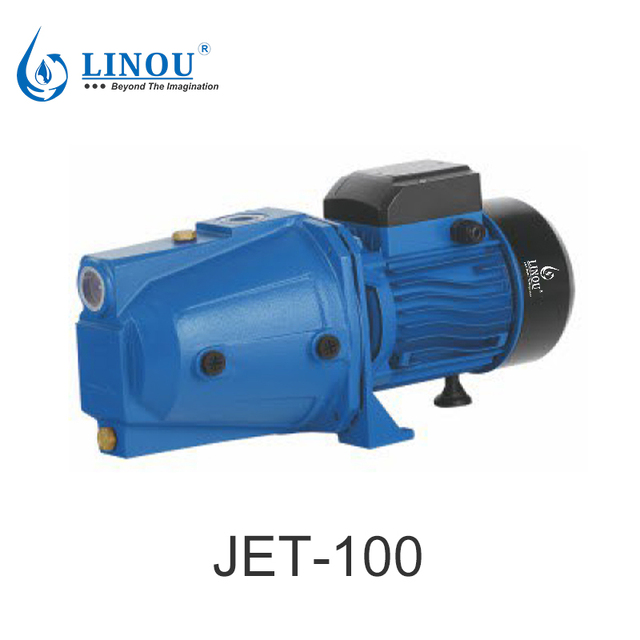

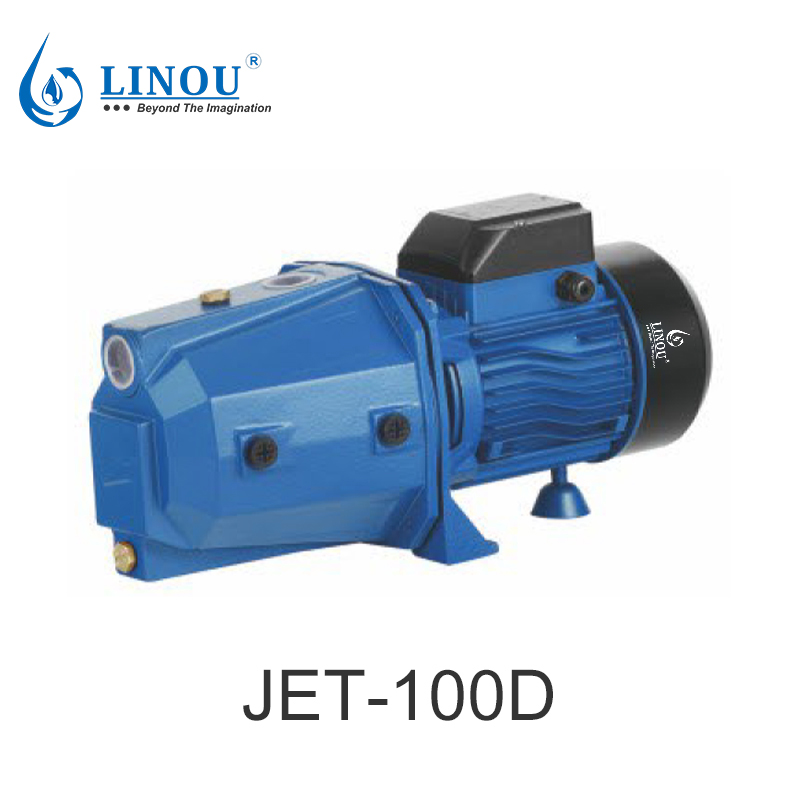

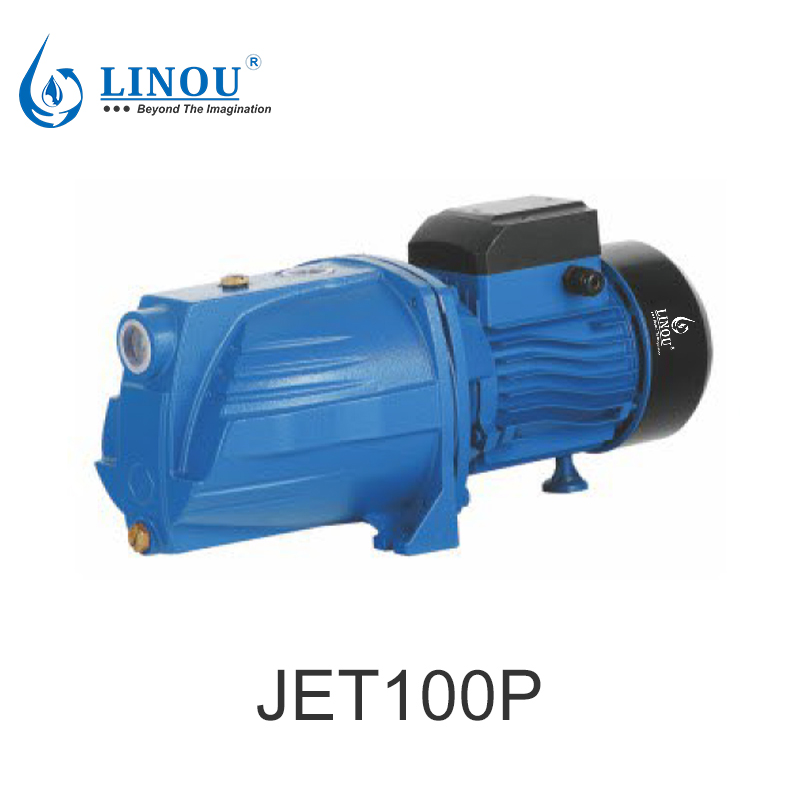

JET

Applications

1. The pump can be used with clean water and liquids that do not chemically attack the materials in which the pump is made. This feature ensures that the pump will not be damaged by the chemical properties of the liquid during operation, thereby ensuring that the pump will function properly and have a long service life.

2. Self-priming function: The unique design of the self-priming jet pump allows it to pump water even if air is present.

3. Reliable and easy to use: It is ideal for home applications due to its reliability and ease of use. For example, it can be used with small and medium-sized pressure devices for water supply, and can also be used for irrigation of gardens and vegetable gardens.

4．To ensure pump performance and longevity, the pump should be installed in a closed environment, or at least protected from inclement weather. This prevents the pump from being eroded by rain, sand, etc. and ensures its stable operation. If the installation environment is inappropriate, it may cause the pump to malfunction and be damaged, affecting its normal operation. Therefore, during installation, the appropriate location must be selected to provide a good operating environment for the pump.

Motor

● Two-pole induction motor(n=2850 r.p.m)
● Insulation Class B
● Protection IP44
● Continuous service S1
● Thermal protector for single phase
● Single-phase 220V/50Hz, 60Hz if request
● Three-phase 380V/50Hz, 60Hz if request

Operating conditions

● Liquid temperature up to 60°C
● Ambient temperature up to 40°C
● Total suction lift up to 9m

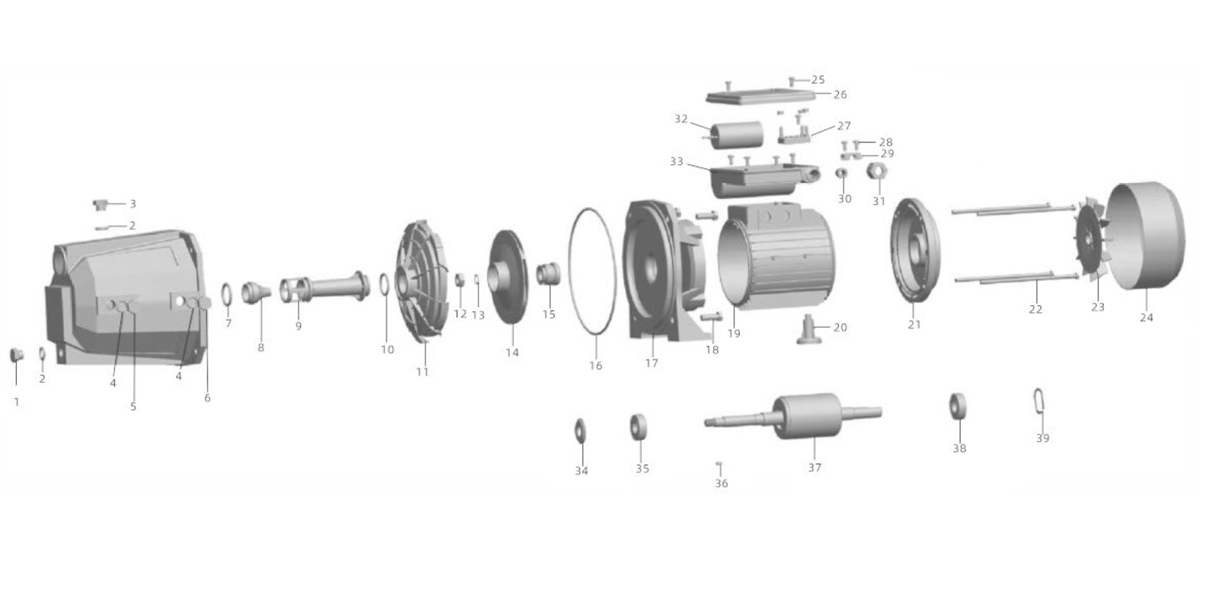

Component Construction

● Pump body: Cast iron
● Pump support: Cast iron
● Motor housing: Aluminum
● Impeller: Brass
● Diffuser: Noryl
● Motor shaft: Carbon steel, AISI304 SS if request
● Mechanical seal: SIC/Graphite
