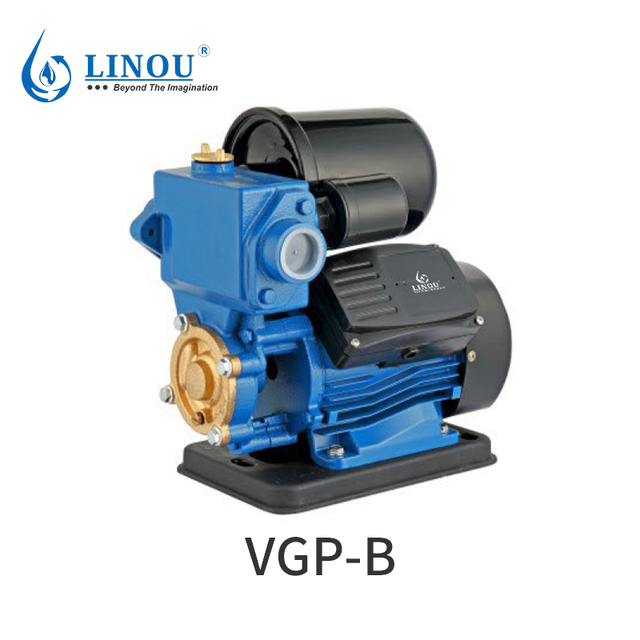

VGP

Applications

● This pump is suitable for clean water without abrasive particles and liquids that are not chemically aggressive to the materials used to make the pump. This ensures that the material of the pump is not damaged by the liquid during operation, thereby extending the service life of the pump.

● Easy to use and economical: It is easy to use, simple to operate, and economical at the same time. Ideal for domestic use, especially when used with small pressure devices for water supply, and for irrigation of gardens and vegetable gardens. Also, the pump is equipped with a flapper check valve.

● Stable water pressure: The pump can maintain stable water pressure, which is crucial for the normal operation of the water heater. Stable water pressure ensures that the water heater operates efficiently and provides users with continuous and stable hot water.

● In order to ensure the normal operation and performance of the pump, the pump should be installed in a closed environment, or at least protected from the effects of severe weather. This can prevent the pump from being eroded by rain, sand and other factors, reduce the possibility of failure, ensure that the pump can work stably for a long time, and provide reliable services to users.

Motor

● Two-pole induction motor(n=2850 r.p.m)

● Insulation Class B

● Protection IP44

● Continuous service S1

● Thermal protector

● Single-phase 220V/50Hz, 60Hz if request

Operating conditions

● Liquid temperature up to 80°C

● Ambient temperature up to 40°C

● Total suction lift up to 9m

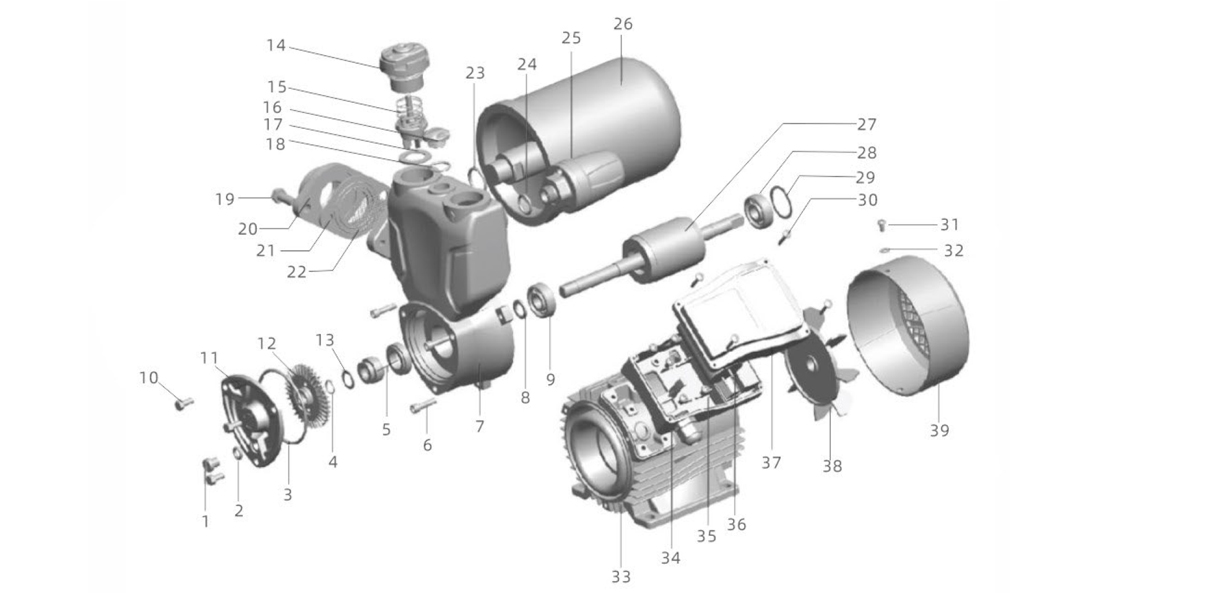

Component Construction

● Pump body: Cast iron+AISI304 SS insert

● Pump support: Pure brass

● Motor housing: Aluminum

● Impeller: Brass

● Motor shaft: AISI304 SS

● Mechanical seal: Ceramic/Graphite
