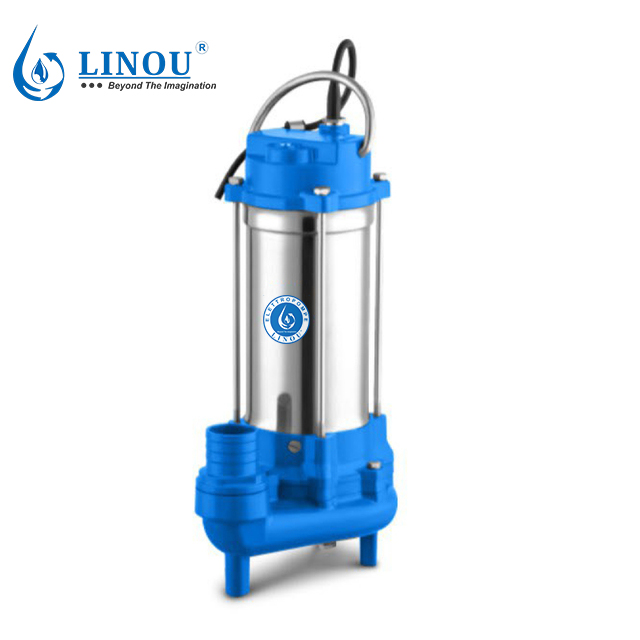

Submersible Sewage Pumps WQD-B

Sewage Pump

WQD-B

Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.

    harhacjz

    Applications

    ● Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
    ● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of Φ10mm.

    Motor

    ● Two-pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector for single phase
    ● Single-phase 220V/50Hz, 60Hz if request
    ● Three-phase 380V/50Hz, 60Hz if request

    Operating conditions

    ● 5m maximum immersion depth
    ● Liquid temperature up to 35°C
    ● Maximum ambient temperature 40°C

    Component Construction

    ● Pump body: Cast iron
    ● Suction filter: AISI304 SS
    ● Impeller:  Cast iron
    ● Motor shaft: AISI304 SS
    ● Mechanical seal: SIC-SIC/Ceramic-Graphite
    ● Cable: 6m power cable with plug

    linouuqk

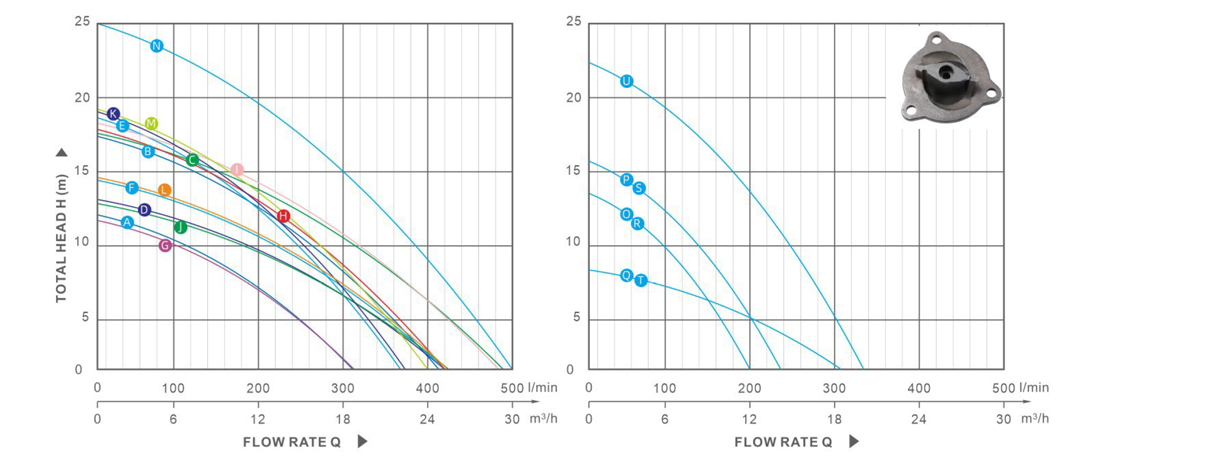

    (50Hz n=2850 rpm/min)
    Model Import/export power Rated current Maximum discharge Maximum lift N.W LxWxH
      Inch KW HP (A) (m³/h) (m)
    Ⓐ   WQD10-8-0.55 2" 0.55 0.75 4.1 19 12.3 20.5 255×175×379
    Ⓑ   WQD5-17-0.75 1.5" 0.75 1 5.2 25 17.2 22 237×175×392
    Ⓒ   WQD6-16-0.75 1.5" 0.75 1 5.2 29 17.7 22 237×175×392
    Ⓓ   WQD10-11-0.75 2" 0.75 1 5.2 25.5 13.9 22 255×175×401
    Ⓔ   WQD8-16-1.1 2" 1.1 1.5 7.3 22.9 18.3 24 255×175×424
    Ⓕ   WQD15-10-1.1 2" 1.1 1.5 7.3 25 14.8 24.5 265×175×421
    Ⓖ   WQ10-8-0.55 2" 0.55 0.75 4.1 19 12.3 20 255×175×379
    Ⓗ   WQ5-17-0.75 1.5" 0.75 1 2 25 17.2 21 237×175×392
    ⓘ   WQ6-16-0.75 1.5" 0.75 1 2 29 17.7 21 237×175×392
    Ⓙ   WQ10-11-0.75 2" 0.75 1 2 25.8 13.9 21 255×175×401
    Ⓚ   WQ8-16-1.1 2" 1.1 1.5 2.7 22.9 18.3 22.5 255×175×424
    Ⓛ   WQ15-10-1.1 2" 1.1 1.5 2.7 25 14.8 23 265×175×421
    Ⓜ   WQ15-15-1.5 2" 1.5 2 3.6 24 19 26 255×175×454
    Ⓝ   WQ8-20-1.5 1.5" 1.5 2 3.6 30 25 25.5 255×175×454
    Ⓞ   WQD7-8-0.75QG 2" 0.75 1 5.2 12 13 21 253×180×445
    Ⓟ   WQD7-12-1.1QG 2" 1.1 1.5 7.3 14 15.5 24 253×180×445
    Ⓠ   WQD7-16-1.5QG 2" 1.5 2 9.5 18.4 7.3 27 253×180×445
    Ⓡ   WQ7-8-0.75QG 2" 0.75 1 2 12 13 21 253×180×445
    Ⓢ   WQ7-12-1.1 QG 2" 1.1 1.5 2.7 14 15.5 22 253×180×445
    Ⓣ   WQ7-16-1.5QG 2" 1.5 2 3.6 18.4 7.3 25 253×180×445
    Ⓤ   WQ9-18-2.2QG 2" 2.2 3 5.1 20 22 33 253×195×480

    n=2900 rpm/min
