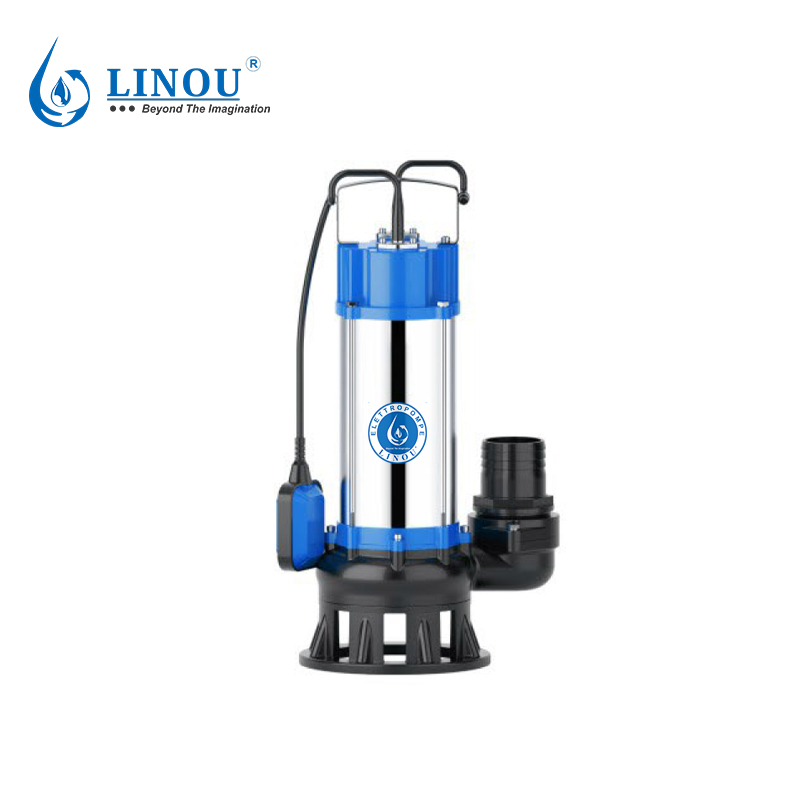

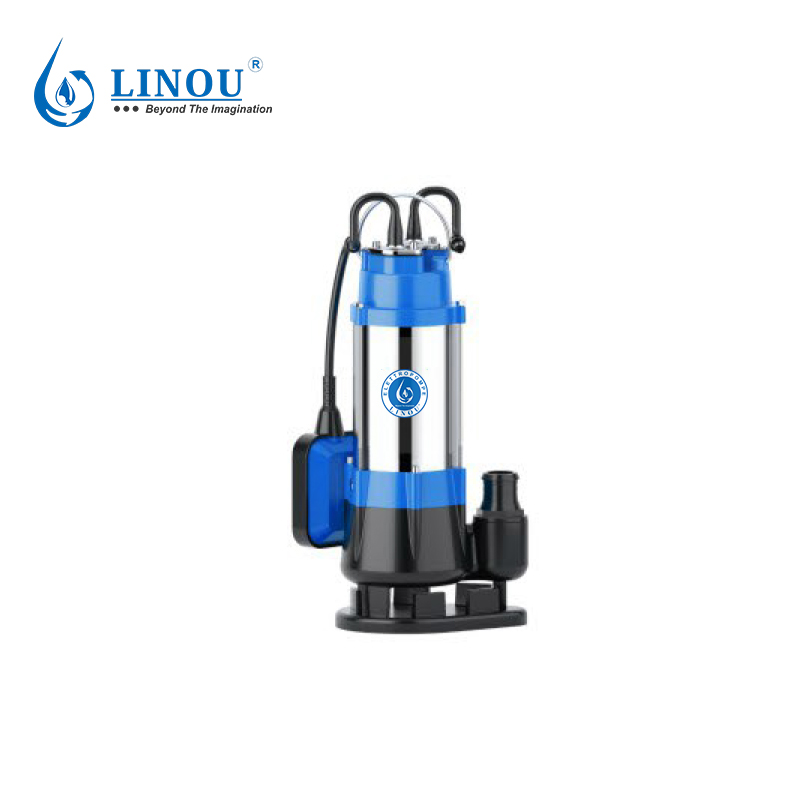

Submersible Sewage Pumps WQD-A

Sewage Pump

WQD-A

Suitable for use with dirty water that is not chemically aggressive towards the materials fromwhichthepumpismade.

    kinaagli

    Applications

    ● Suitable for use with dirty water that is not chemically aggressive towards the materials fromwhichthepumpismade.
    ● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of Φ10mm.

    Motor

    ● Two-pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector for single phase
    ● Single-phase 220V/50Hz, 60Hz if request
    ● Three-phase 380V/50HZ, 60Hz if request

    Operating conditions

    ● 5m maximum immersion depth
    ● Liquid temperature upto 35°C
    ● Maximum ambient temperature 40°C

    Component Construction

    ● Pump body: Cast iron
    ● Suction filter: AISI304 SS
    ● Impeller: Cast iron
    ● Motor shaft: AISI304SS
    ● Mechanical seal: SIC-SIC/Ceramic-Graphite
    ● Cable: 6m power cable with plug

    linouuqk

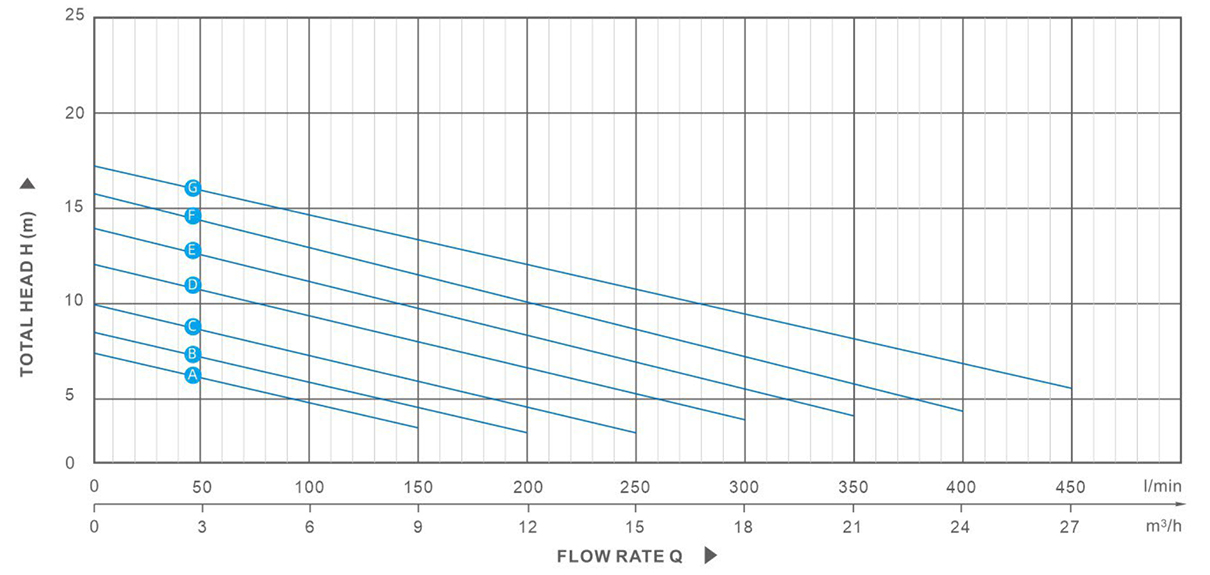

    (50Hz n=2850 rpm/min)
    Model Import/export power Flow
    Q(m³/h) 0 3 6 9 12 15 18 21 24 27
      Inch KW HP (L/min) 0 50 100 150 200 250 300 350 400 450
    Ⓐ  WQD370F-A 1¼" 0.25 0.34 H(m) 7 6 4.5 2.8 - - - - - -
    Ⓑ  WQD370F-A 1¼" 0.37 0.5 8 7 6 4.2 2.5 - - - - -
    Ⓒ  WQD550F-A 2" 0.55 0.75 10 8 7 5.5 3.5 2.5 - - - -
    Ⓓ  WQD750F-A 2" 0.75 1 12 10 9 7.5 6.5 4.5 3 - - -
    Ⓔ  WQD1100F-A 2" 1.1 1.5 14 12 11 10 8.5 7.5 5.5 3.8 - -
    Ⓕ  WQD1500F-A 2" 1.5 2 15.5 14.3 13 12 11 9 8 6.5 4.6 -
    Ⓖ  WQD2200F-A 2" 2.2 3 16.5 15.5 14.5 14 13 11 10.5 9 7.5 5.7

    n=2850 rpm/min

    texinaggli
    lititui4i
    Model Import/export N.W Length x width x height
      Inch Kg mm
    1¼" 7.5 265×220×365
    1¼" 8.5 265×220×380
    2" 13 265×220×435
    2" 14 265×220×435
    2" 16 265×220×435
    2" 19 265×220×515
    2" 21 265×220×530
