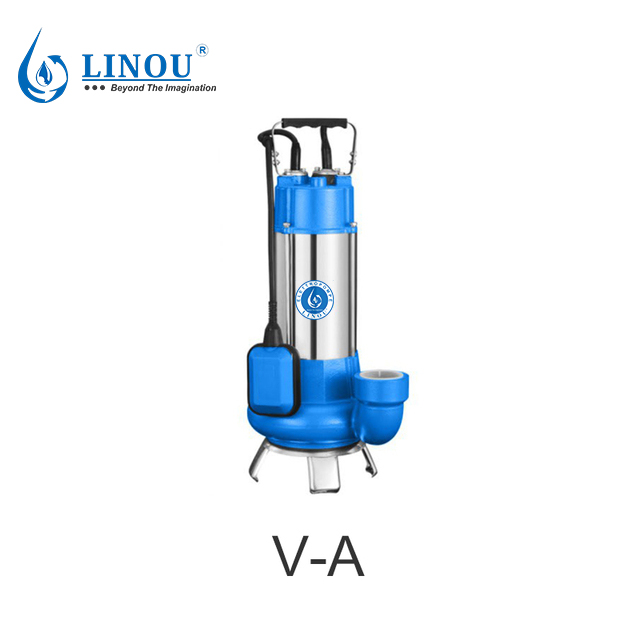

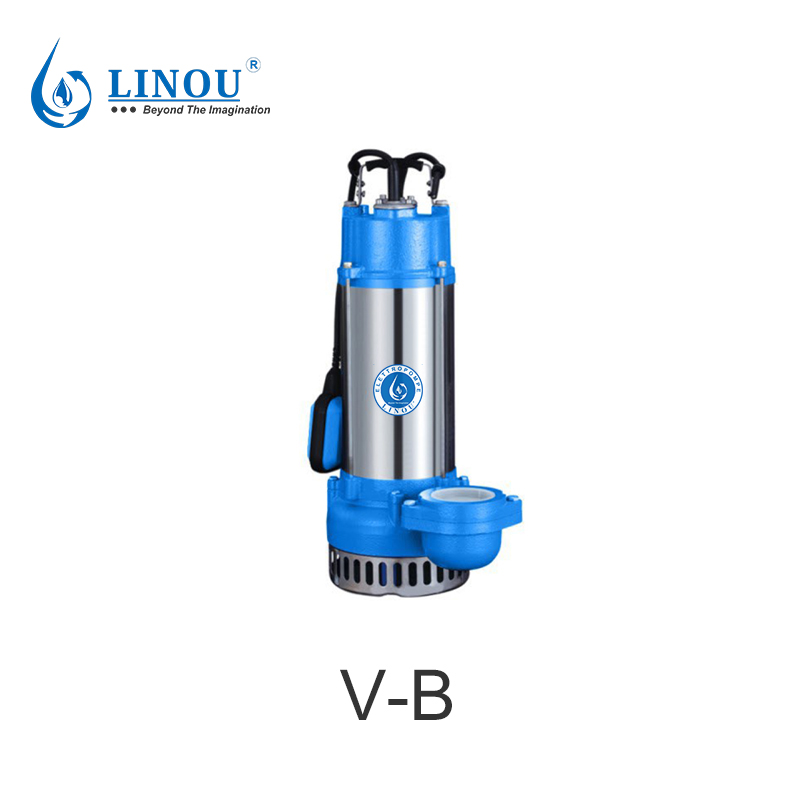

Submersible Sewage Pumps V-A/B

Sewage Pump

V-A/B

Suitable for use with dirty water that is not chemically aggressive towards the materials fromwhichthepumpismade.

    aegfkat

    Applications

    1. Submersible sewage pump VA/B can be used for sewage that is not chemically corrosive to the pump manufacturing materials.

    2. Functions and applications

    ● Purify sewage: With its reliable performance, this pump can effectively participate in the sewage purification process, transport sewage to purification facilities, and help improve water quality.

    ● Discharge domestic wastewater: Its easy-to-use features make it an ideal choice for discharging domestic wastewater. Whether it is domestic wastewater from households or commercial places, it can be discharged smoothly.

    ● Empty the collection trap: It can empty the collection trap containing particles up to Φ10mm. Its powerful pumping capacity can easily handle sewage containing certain solid particles, ensuring effective cleaning of collection traps.

    In short, the submersible sewage pump VA/B, with its suitability for specific sewage, reliability and ease of use, has become a reliable device for purifying sewage, discharging waste water and emptying collection traps.

    Motor

    ● Two-pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector for single phase
    ● Single-phase 220V/50Hz, 60Hz if request
    ● Three-phase 380V/50HZ, 60Hz if request

    Operating conditions

    ● 8m maximum immersion depth
    ● Liquid temperature upto 35°C
    ● Maximum ambient temperature 40°C

    Component Construction

    ● Pump body: Cast iron
    ● Suction filter: AISI304 SS
    ● Impeller: Cast iron
    ● Motor shaft: AISI304SS
    ● Mechanical seal: SIC-SIC/Ceramic-Graphite
    ● Cable: 6m power cable with plug

    linouuqk

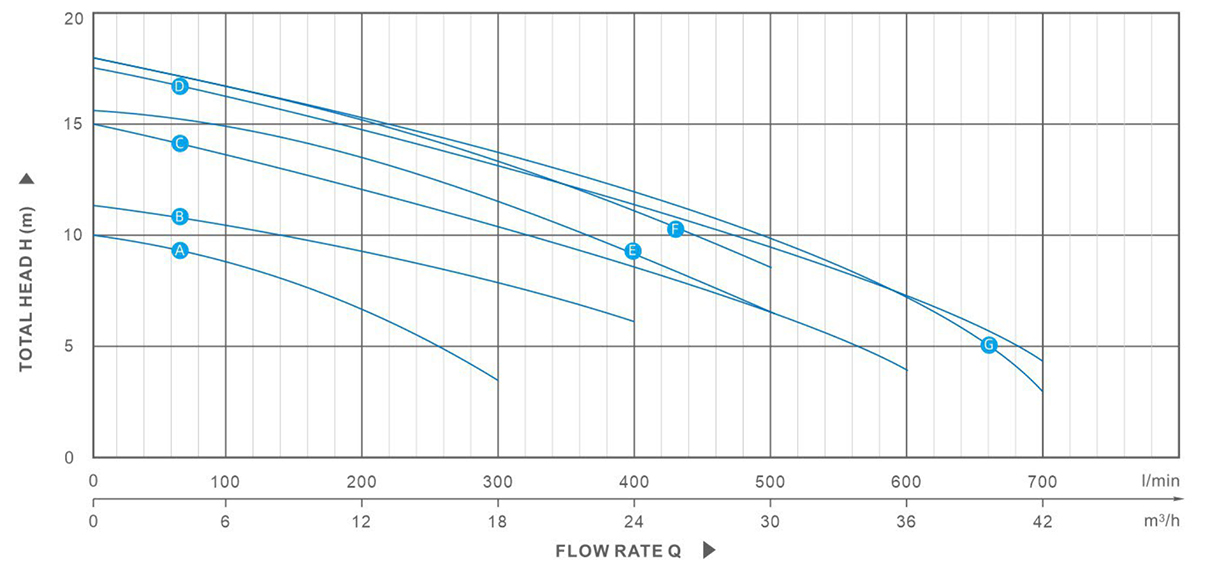

    (50Hz n=2850 rpm/min)
    Model Import/export power Flow
    Q(m³/h) 0 6 12 18 24 30 36 42
      Inch KW HP (L/min) 0 100 200 300 400 500 600 700
    Ⓐ  V800-A 2" 0.8 1.1 H(m) 10 8.5 6.5 4 - - - -
    Ⓑ  V1100-A 2" 1.1 1.5 11.5 10.5 9 7.5 6 - - -
    Ⓒ  V1600-A 3" 1.5 2 15 14 12.5 10.3 8 6 4 -
    Ⓓ  V2200-A 3" 2.2 3 17.5 16.3 15 13.5 11.6 9.3 7 4.5
    Ⓔ  V1500-B 2" 1.5 2 15.5 15 12.5 10 8.5 6.3 - -
    Ⓕ  V2200-B 2" 2.2 3 18 16 15 13 12 8.2 - -
    Ⓖ  V2200-B 2½"/3" 2.2 3 18 16 15 13 12 10 7 3

    n=2850 rpm/min

    quxianb46
    baozhuangb47
    Model Import/export N.W Length x width x height
    Inch Kg mm
    2" 20 290×230×570
    2" 22 300×230×590
    3" 32 370×270×660
    3" 36 370×270×690
    2" 25 300×200×495
    2" 28 300×200×520
    2½"/3" 28 300×200×520
