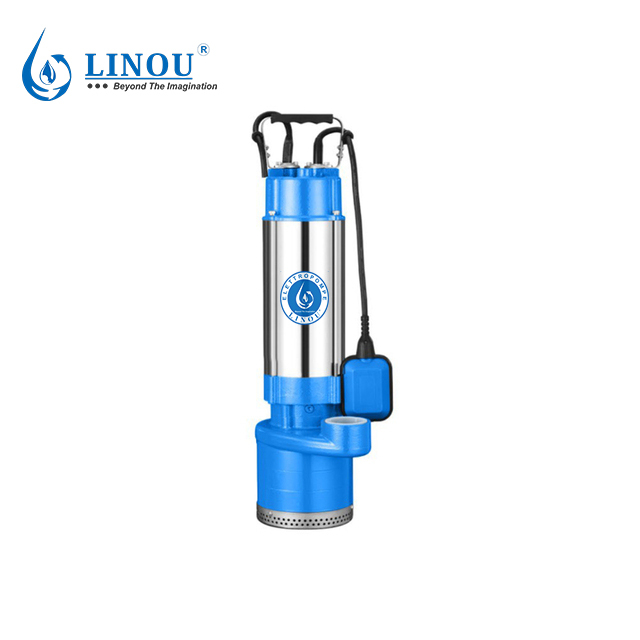

Submersible Pumps SPA

Clean Water Pump

SPA

Suitable for use with clean water that does not contain abrasive particles.

    tediang98

    Applications

    ● Suitable for use with clean water that does not contain abrasive particles.
    ● The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high head and mid flow rates are required.

    Motor

    ● Two- pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector for single phase
    ● Single-phase 220V/50Hz, 60Hz if request
    ● Three-phase 380V/50HZ, 60Hz if request

    Operating conditions

    ● 8m maxim um immersion depth
    ● Liquid temperature upto 35°C
    ● Maximum ambient temperature 40°C

    Component Construction

    ● Pump body:  Cast iron
    ● Suction filter: AISI304 SS
    ● Impeller: Cast iron
    ● Motor shaft: AISI304SS
    ● Mechanical seal: Ceramic-Graphite + Ceramic-Graphite
    ● Cable: 12m power cable with plug

    linouuqk

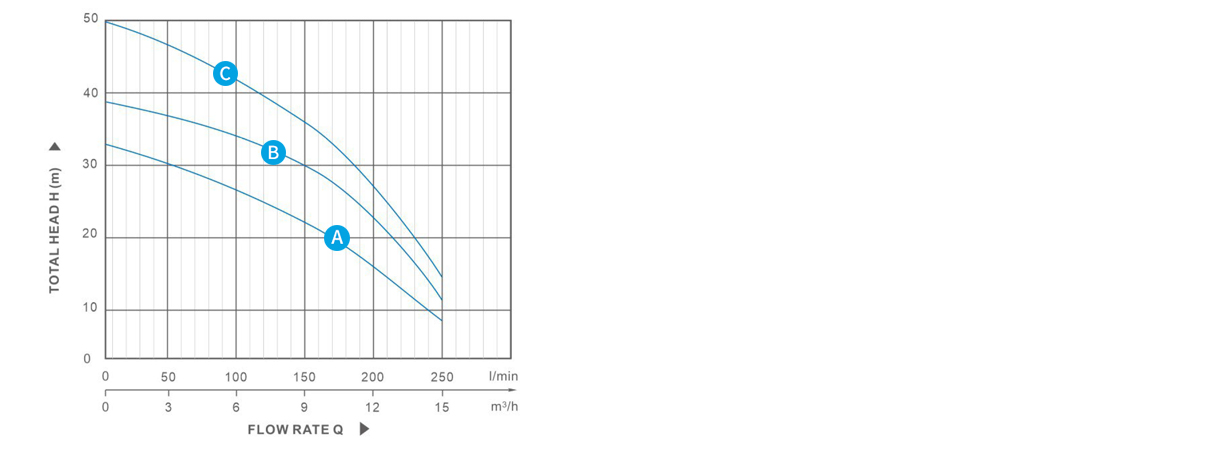

    (50Hz n=2850 rpm/min)
    Model Import/export power Flow
    Q(m³/h) 0 6 12 18 24 30
      Inch KW HP (L/min) 0 20 40 60 80 100
    Ⓐ  SPA6-28/2-1.1 2" 1.1 1.5 H(m) 32.5 32 30 25.5 19 8.5
    Ⓑ  SPA6-39/3-1.5 2" 15 2 39.5 38.5 35 30 22.5 11.5
    Ⓒ  SPA6-50/4-2.2 2" 2.2 3 50 48 43.5 36 26.5 14

    n=2850 rpm/min

    quxian7r7
    baozhuangfxy5

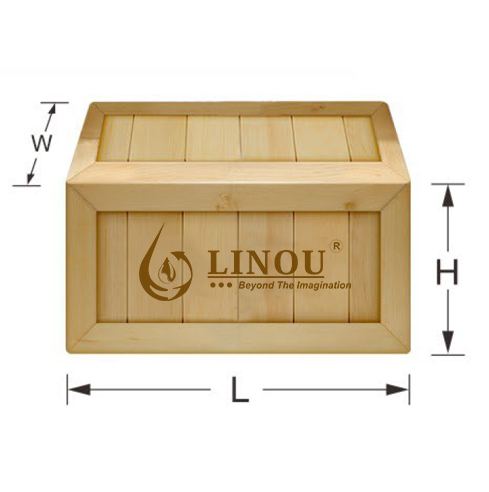

    Model Import/export N.W Length x width x height
      Inch Kg mm
    1¼" 7.5 265×220×365
    1¼" 8.5 265×220×380
    2" 13 265×220×435
    lingjaine4x

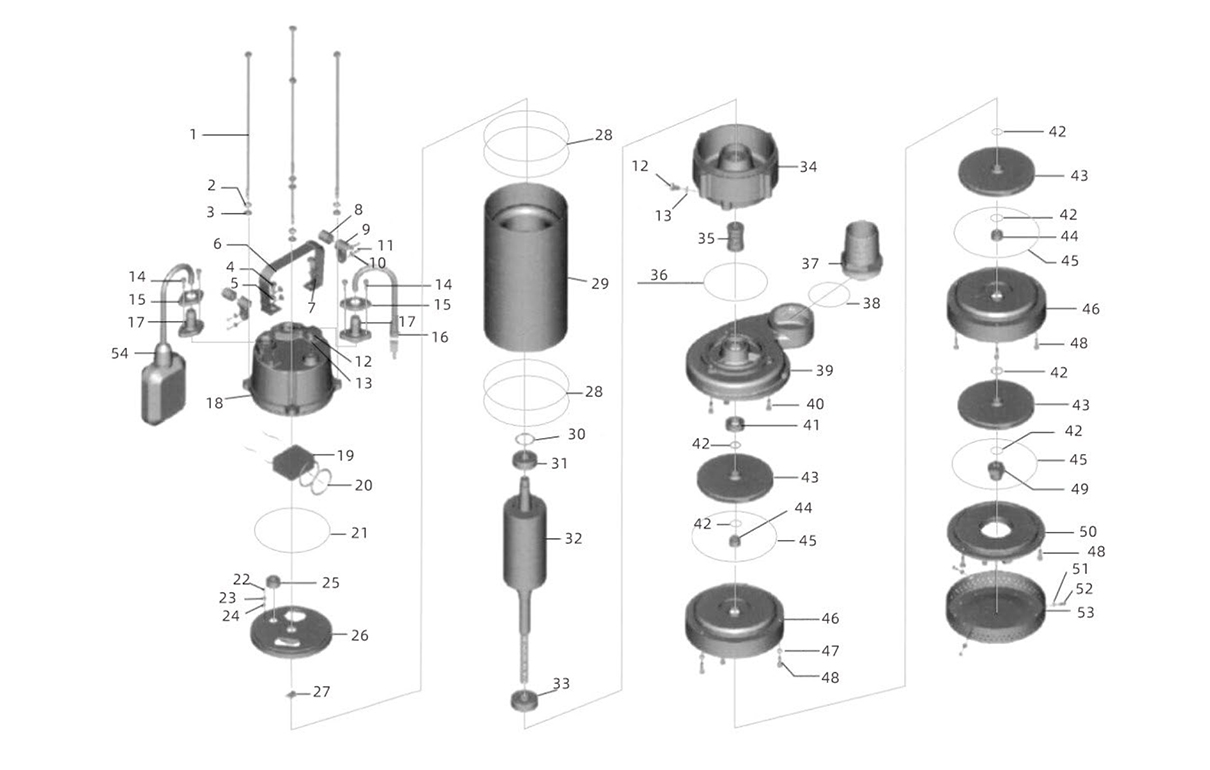

    Materials Table
    No. Parts and components Materials
    1 bolt steel
    2 Stretch washer steel
    3 gasket steel
    4 bolt steel
    5 gasket steel
    6 controller steel
    7 nut steel
    8 protector rubber
    9 Cable clamp steel
    10 gasket steel
    11 screw steel
    12 bolt steel
    13 An "O" ring rubber
    14 screw steel
    15 Francois steel
    16 cable rubber
    17 Cable protector rubber
    18 Capacitance cap iron
    19 condenser Assembly
    20 An "O" ring rubber
    21 Rubber washer rubber
    22 screw steel
    23 Stretch washer steel
    24 gasket steel
    25 Line protector Assembly
    26 Motor cover iron
    27 Thermal protector Assembly
    28 An "O" ring rubber
    29 Motor stator Assembly
    30 Corrugated washer steel
    31 Ball bearing Assembly
    32 rotor Assembly
    33 Ball bearing Assembly
    34 Connecting part iron
    35 Mechanical seal Ceramic-graphite
    36 An "O" ring rubber
    37 Outlet connector iron
    38 An "O" ring rubber
    39 Pump casing iron
    40 screw steel
    41 Oil seal Assembly
    42 Rubber washer steel
    43 impeller PPO
    44 Word ring steel
    45 An "O" ring rubber
    46 Guide vane iron
    47 Stretching washer steel
    48 screw steel
    49 nut steel
    50 Pump cover iron
    51 gasket steel
    52 screw steel
    53 Filter screen steel
