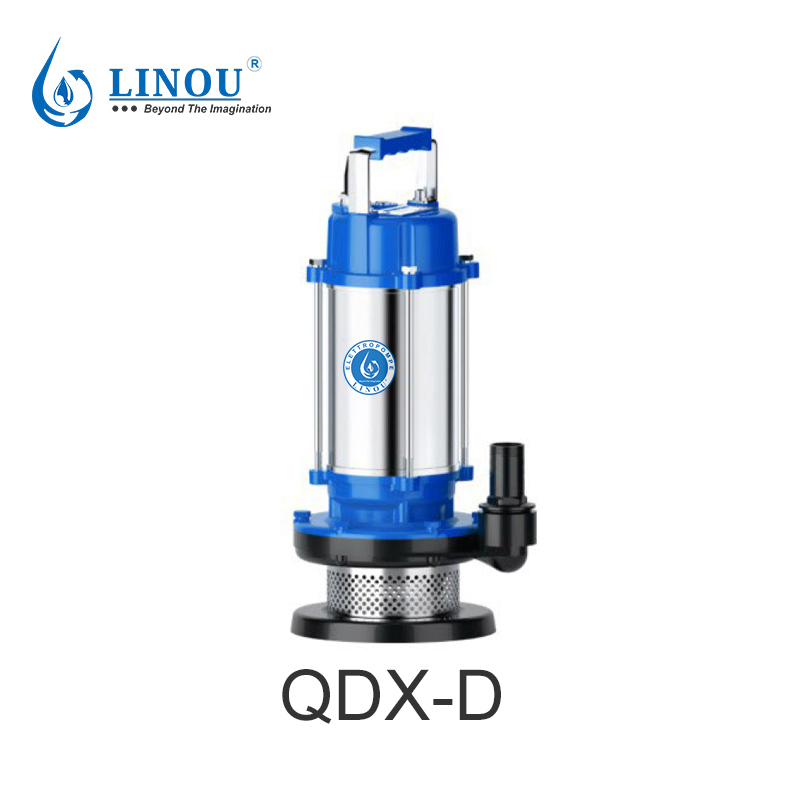

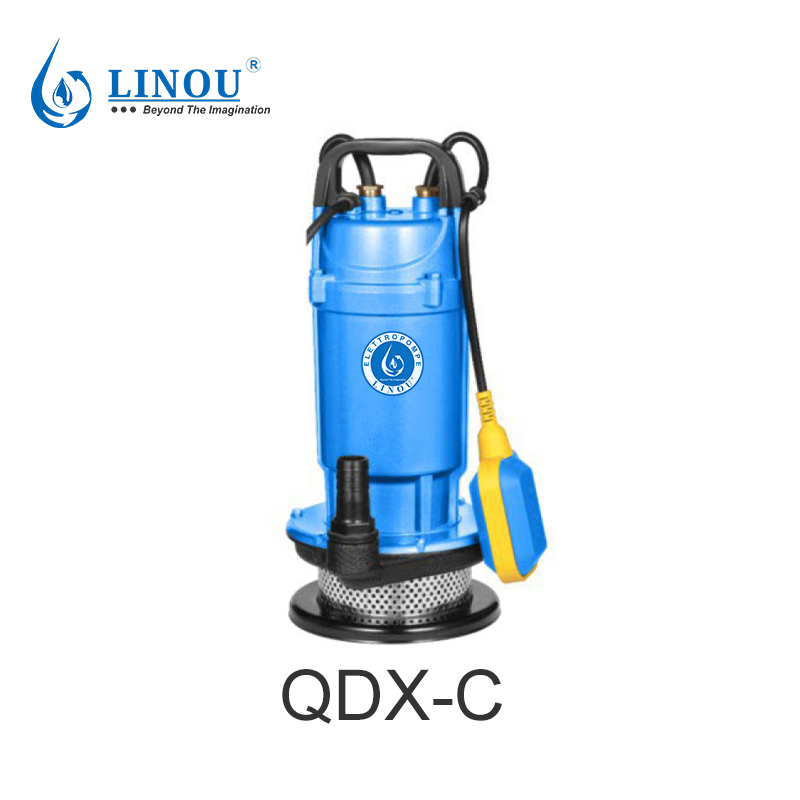

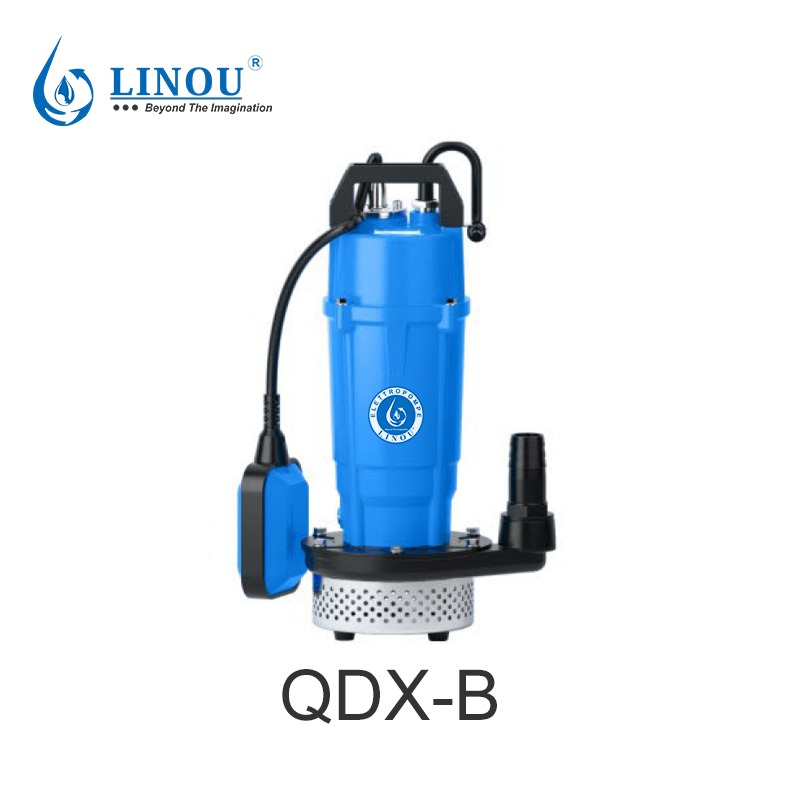

Submersible Clean Water Pump QDX-A-B-C-D

Clean Water Pump

QDX-A-B-C-D

Suitable for use with clean water that does not contain abrasive particles.

    tedian4u7

    Applications

    ● Suitable for use with clean water that does not contain abrasive particles.
    ● As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as domestic, gardening, irrigation and emptying tanks.

    Motor

    ● Two-pole induction motor(n=2850 r.p.m)
    ● Insulation Class B
    ● Protection IP68
    ● Continuous service S1
    ● Thermal protector
    ● Single-phase 220V/50Hz, 60Hz if request

    Operating conditions

    ● 5m maximum immersion depth
    ● Liquid temperature upto 35°C
    ● Maximum ambient temperature 40°C

    Component Construction

    ● Pump body: Cast iron
    ● Suction filter: Aluminum
    ● Impeller: Aluminum
    ● Motor shaft: Carbon steel,AISI304 SS if request
    ● Mechanical seal: Ceramic/Graphite
    ● Cable: 8m power cable with plug

    linouuqk

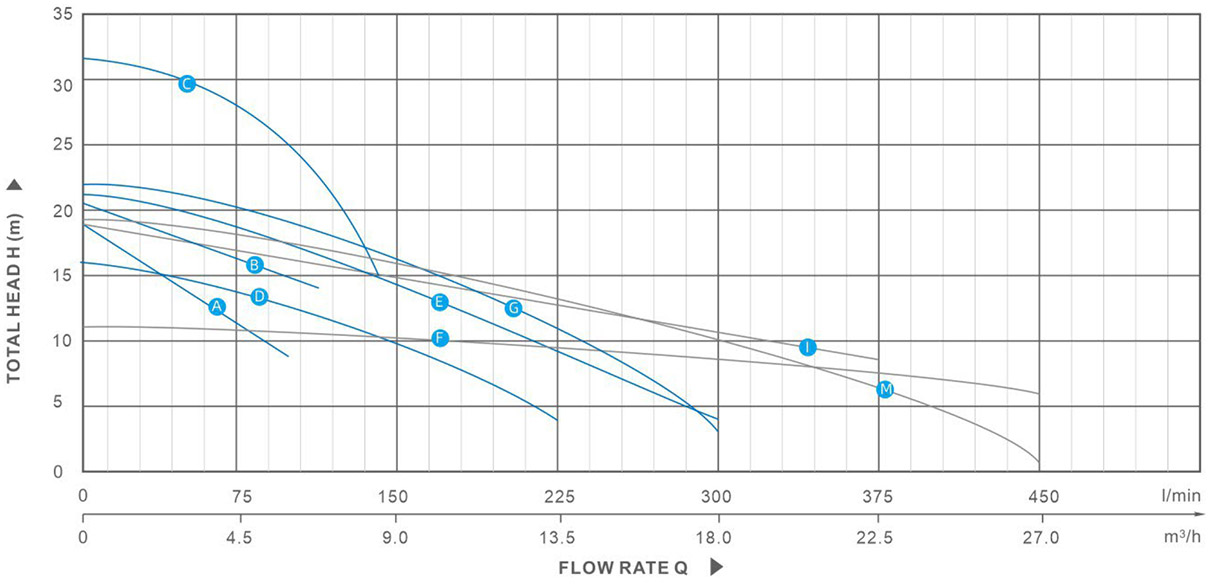

    (50Hz n=2850 rpm/min)
    Model Import/export power Flow
    Q(m³/h) 0 1.2 2.4 3.6 4.8 6 7.2 8.4
      Inch KW HP (L/min) 0 20 40 60 80 100 120 140
    Ⓐ  SPA6-28/2-1.1 2" 1.1 1.5 H(m) 18 16 15 13.5 11.2 8.2 - -
    Ⓑ  SPA6-39/3-1.5 2" 15 2 20.5 20 19.5 18.5 17 14.5 12.5 -
    Ⓒ  SPA6-50/4-2.2 2" 2.2 3 32 31 30 29 27.5 23 19 15
    Model Import/export power Flow
    Q(m³/h) 0 4.5 9 13.5 18 22.5 27
      Inch KW HP (L/min) 0 20 40 60 80 100 120
    Ⓓ  QDX10-10-0.55F-A/B/C/D 1½" 0.55 0.75 H(m) 16 14 11.5 4 - - -
    Ⓔ  QDX7-13-0.75F-A/B/C/D 1½" 0.75 1 21 20 18.5 7.5 4.5 - -
    Ⓕ  QDX15-10-0.75F-A/B/C/D 1¼" 0.75 1 11 10.5 10 9.5 8.5 7.5 5.8
    Ⓖ  QDX10-16-0.75F-A/B/C/D 2½" 0.75 1 21 19 17 12.5 4 - -
    Ⓜ  QDX15-15-1.1F-A/B/C/D 1½" 1.1 1.5 18.5 17.8 16 14 11.5 7.3 1.5
    ⓛ  QDX10-18-1.1F-A/B/C/D 2" 1.1 1.5 18 17.5 17 15 12 8 -

    n=2850 rpm/min

    njianl8b
    baozhuangtrp

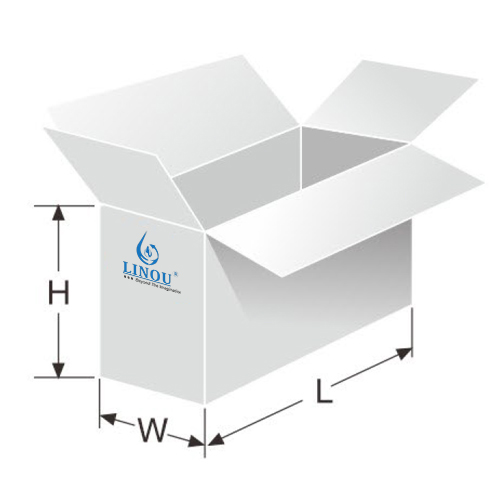

    Model Import/export N.W Length x width x height
      Inch Kg mm
    1" 9 190×150×390
    1" 12 210×160×415
    1" 13 225×180×430
    1½" 13 225×165×415
    1½" 14 225×165×420
    1¼" 14.5 233×168×430
    21½" 14 235×165×425
    1½" 15 250×175×445
    2" 15 240×175×450
