OIL COOLING SUBMERSIBLE MOTOR

Oil Cooling Submersible Motor

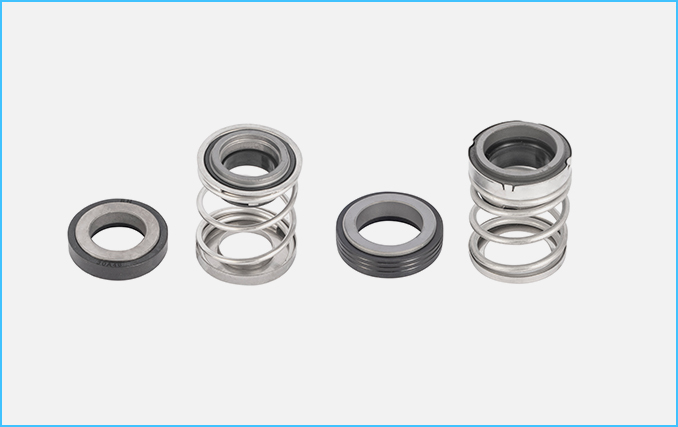

● Efficient and precise mechanical seals.

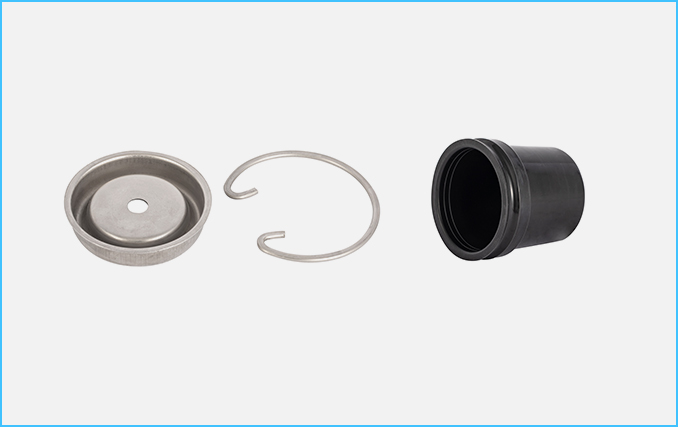

● Motor housing and bottom cover adopt stainless steel 304.

● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity.

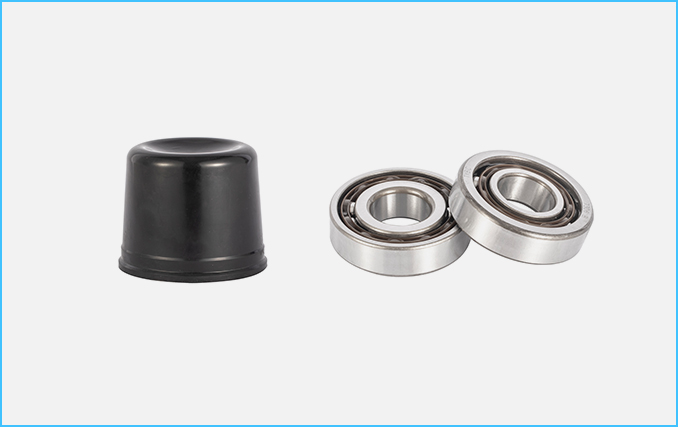

● High precision silent bearing enables the pumps long service life, more stable operation.

product details

Model Parameter Table

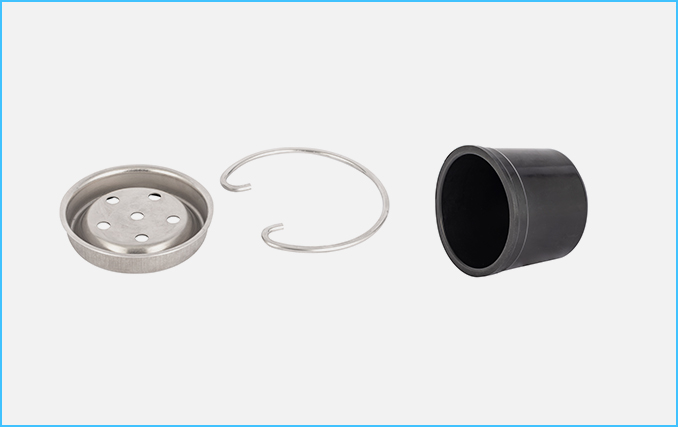

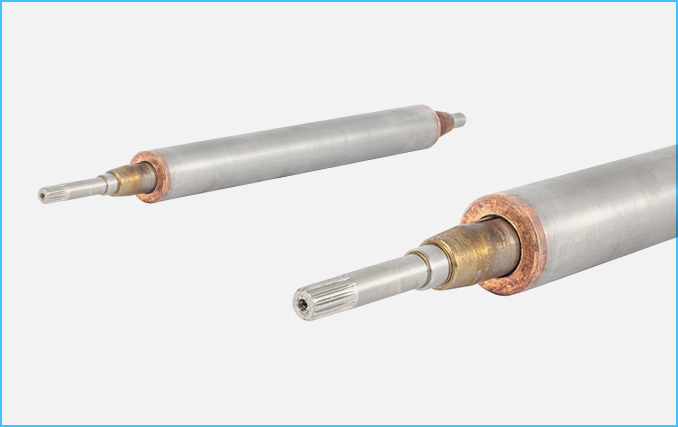

Parts

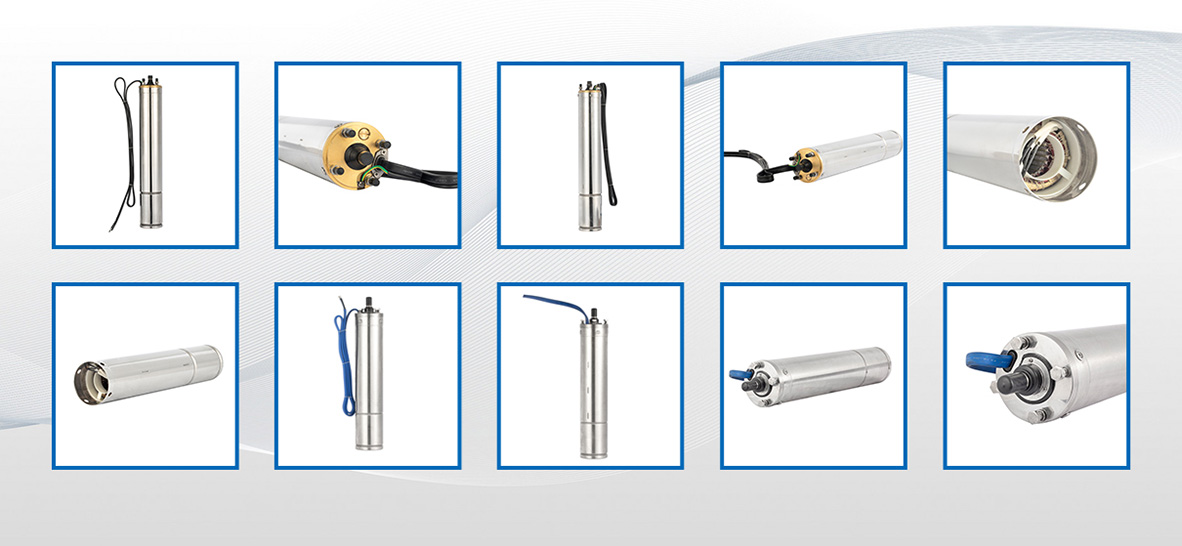

1aa1ffae-2a60-429a-aa61-7af5ea291e26j4b

3" oil cooling submersible motor (Feature)

● Efficient and precise mechanical seals.

● Motor housing and bottom cover adopt stainless steel 304.

● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity.

● High precision silent bearing enables the pumps long service life, more stable operation.

● The stator adopts H class (200 degrees) high temperature resistant pure copper wire, low temperature rise, safe and reliable, suitable for long-term continuous work, long service life, environmental protection and energy saving.

● Starting voltage can be as low as 180V.

3.5" oil cooling submersible motor (Feature)

● Efficient and precise mechanical seals.

● Motor housing and bottom cover adopt stainless steel 304.

● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity.

● High precision silent bearing enables the pumps long service life, more stable operation.

● Starting voltage can be as low as 180V.

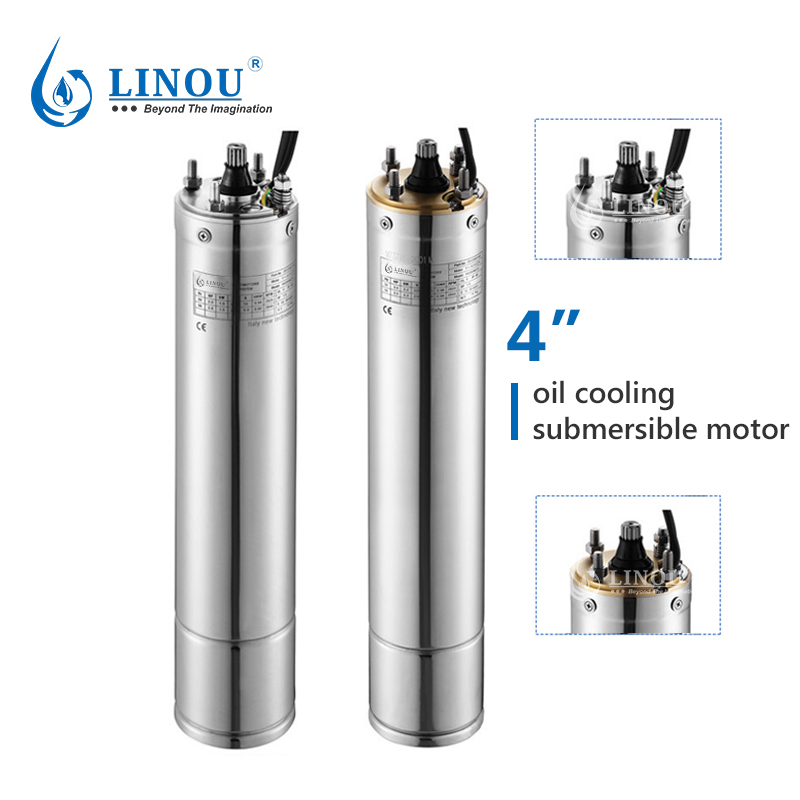

4" oil cooling submersible motor (Feature)

● Efficient and precise mechanical seals.

● Motor housing and bottom cover adopt stainless steel 304.

● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity.

● High precision silent bearing enables the pumps long service life, more stable operation.

● 4-inch single-phase motor can be 160v-220v wide voltage.

● Plug type cable can be used to make cable replacement more convenient.

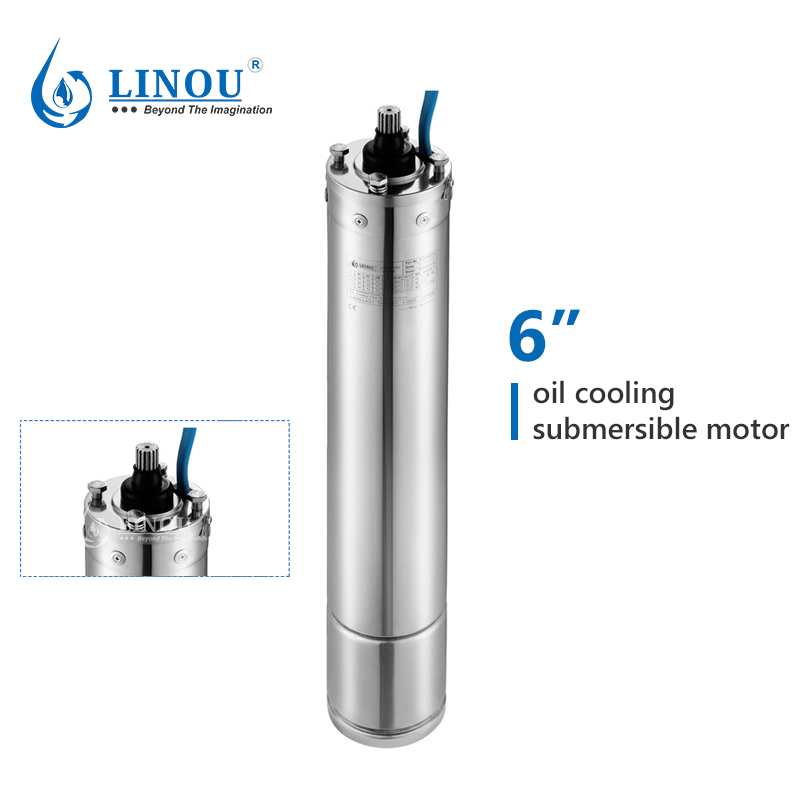

6" oil cooling submersible motor (Feature)

● Italian efficient and precise mechanical seals.

● Motor housing and bottom cover adopt stainless steel 304.

● Cold-rolled high-efficient and precise silicon steel sheet is adopted for laminations, with low loss and good magnetic conductivity.

● High precision silent bearing enables the pumps long service life, more stable operation.

● Starting voltage can be as low as 180V.

3"oil cooling submersible motor
Single-phase 220/230V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
3 OPM33	0.25	0.33	2.2	0.86	2800	333	6
3 OPM50	0.37	0.5	3.1	0.91	2800	353	6.3
3 OPM75	0.55	0.75	4	0.91	2800	373	6.7
3 OPM100	0.75	1	5.4	0.95	2800	413	7.7
3 OPM150	1.1	1.5	8	0.99	2800	473	8.4
3 OPM200	1.5	2	9.8	0.99	2800	513	10
Three-phase 380 / 415V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
3 OP50	0.37	0.5	1.8	0.63	2800	333	6.1
3 OP75	0.55	0.75	2.1	0.65	2800	353	6.5
3 OP100	0.75	1	2.5	0.68	2800	373	6.8
3 OP150	1.1	1.5	3.5	0.7	2800	413	7.8
3 OP200	1.5	2	4.5	0.73	2800	473	8.5

3.5"oil cooling submersible motor
Single-phase 220/230V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
3.5 OPM50	0.37	0.5	3.4	0.94	2850	400	7
3.5 OPM75	0.55	0.75	4.6	0.94	2850	420	8
3.5 OPM100	0.75	1	6	0.95	2850	440	10
3.5 OPM130	0.95	1.3	7.8	0.95	2850	460	12
3.5 OPM150	1.1	1.5	8.3	0.95	2850	480	13
3.5 OPM200	1.5	2	10	0.96	2850	560	14
Three-phase 380 / 415V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
3.5 OP75	0.55	0.75	1.8	0.73	2850	400	8
3.5 OP100	0.75	1	2.4	0.73	2850	420	10
3.5 OP130	0.95	1.3	2.8	0.75	2850	440	12
3.5 OP150	1.1	1.5	3.4	0.78	2850	460	13
3.5 OP200	1.5	2	4.4	0.94	2850	490	14

4"oil cooling submersible motor
Single-phase 220/230V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
4 OPM33	0.25	0.33	3	0.86	2830	412	6
4 OPM50	0.37	0.5	3.6	0.88	2830	422	7
4 OPM75	0.55	0.75	4.8	0.89	2830	432	8
4 OPM100	0.75	1	6.3	0.9	2830	457	10
4 OPM150	1.1	1.5	8.6	0.9	2850	487	12
4 OPM200	1.5	2	10.6	0.94	2850	522	14
4 OPM300	2.2	3	14	0.96	2850	577	16
Three-phase 380 / 415V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
4 OP75	0.55	0.75	1.85	0.8	2850	432	7.5
4 OP100	0.75	1	2.3	0.81	2850	452	9
4 OP150	1.1	1.5	3.2	0.82	2850	482	10
4 OP200	1.5	2	4.1	0.82	2850	512	12
4 OP300	2.2	3	5.8	0.83	2850	567	14.5
4 OP400	3	4	7.8	0.83	2850	602	17
4 OP550	4	5.5	10.4	0.83	2850	672	21
4 OP750	5.5	7.5	13.5	0.85	2850	772	26
4 OP1000	7.5	10	18	0.85	2850	907	32.5

6"oil cooling submersible motor
Three-phase 380 / 415V 50HZ
Model	KW	HP	Current(A)	cosΦ	rpm	L(mm)	W(Kg)
6 OP300	2.2	3	5.5	0.8	2850	678	30
6 OP400	3	4	7.6	0.8	2850	698	32
6 OP550	4	5.5	10	0.8	2850	718	34
6 OP750	5.5	7.5	12.9	0.83	2850	743	36
6 OP1000	7.5	10	16.5	0.85	2850	768	38
6 OP1250	9.2	12.5	19.5	0.87	2850	818	42
6 OP1500	11	15	23	0.87	2850	878	48.5
6 OP1750	13	17.5	26.3	0.88	2850	958	56.5
6 OP2000	15	20	29.5	0.88	2850	1008	61
6 OP2500	18.5	25	36.3	0.89	2850	1108	72
6 OP3000	22	30	43.1	0.89	2850	1183	78
