DC Brushless Vortex Surface Solar Pump DCQB

Solar Ground Pump

DCQB

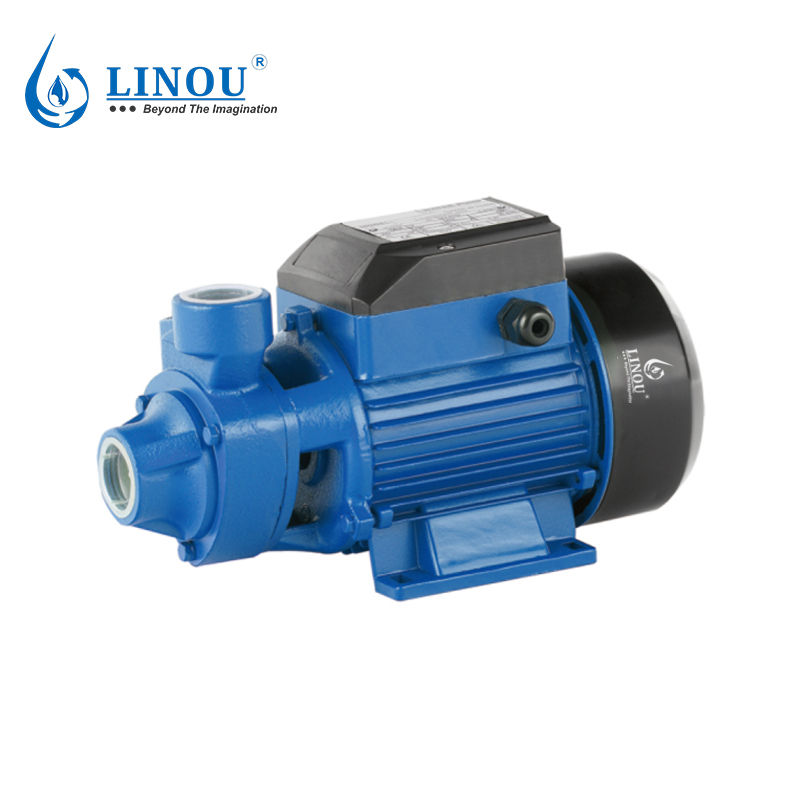

DCQB DC BRUSHLESS VORTEX SURFACE SOLAR PUMP:Vortex solar ground pump. The impeller is made of brass. It is mainly characterized by low power, low voltage and large water head. It is suitable for clean water without abrasive particles and liquid without chemical corrosivity to pump manufacturing materials. They are easy to use and economical and are ideal for household use, especially in combination with small pressure groups for water distribution and for irrigation and distribution of gardens. The pump should be installed in a closed environment or at least away from bad weather. The pump requires fewer solar panels and batteries, which also reduces the installation cost of the pump

    DCQB DC BRUSHLESS VORTEX SURFACE SOLAR PUMP

    jiua1rno

    Installation and use:

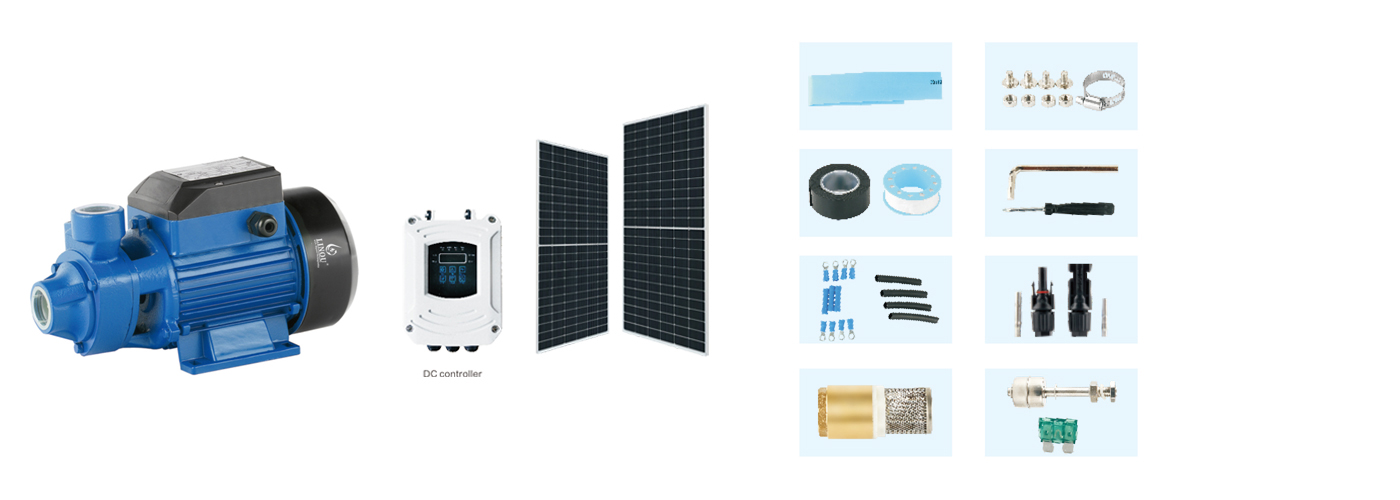

    The whole device of solar pump is mainly composed of solar panel, control box and pump. The solar surface pump used to increase water pressure. Allow water to be transported to higher and bigger ranges. Working with solar energy, it is the most attractive water supply method in the sun-rich regions of the world, especially in remote areas that lack electricity. In addition to the pump and renewable energy source, solar pump incorporates all necessary controls, communication and ancillary units delivered as one complete system. The system can be combined and adapted to any need, matching the conditions on the installation site. The choice of energy source and wide- ranging performance ensures extreme flexibility.

    DC CONTROLLER WORKING ENVIRON MENT AND ELECTRICAL PROPERT

    Controller and Pump Matching Method

    Controller Model Adaptable Pump Max.Input Current
    (A)
    Max .Open Circuit Voltage
    (V)
    MPPT Voltage Range
    (V)
    Working Temperature
    (℃)
    VH-24 Rated 24V Pump 15 <50 24-36 -15-60
    VH-36 Rated 36V Pump 15 <50 24-36 -15-60
    VH-48 Rated 48V Pump 15 <100 48-72 -15-60
    VH-72 Rated 72V Pump 15 <150 72-108 -15-60
    VH-110 Rated 110V Pump 15 <200 96-144 -15-60
    ahehvyz

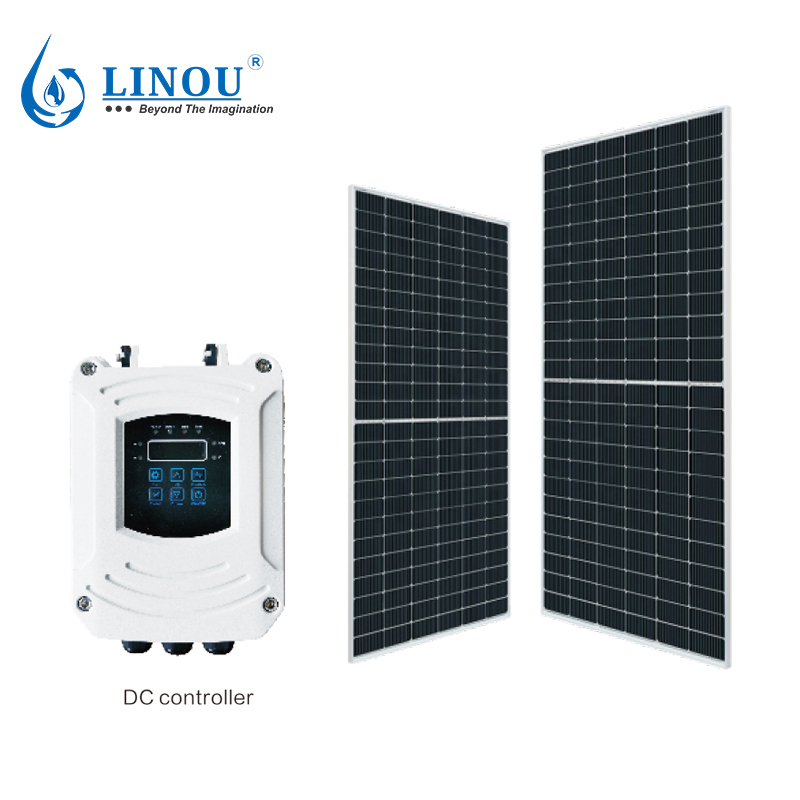

    MPPT SOLAR CONTROLLER

    LED display: power、voltage 、current、 speed、 fault code.
    Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
    Protection grade: IP65
    Operating temperature: - 15 ℃ - 65 ℃
    Speed regulation of control motor: 1000-4500r / min
    Maximum current: 15A

    jiabha279g

    The permanent magnet DC brushless synchronous motor is an outstanding device. It integrates an n40sh rare - earth strong magnet, 180℃ high - temperature enamelled wire, and 600 silicon steel sheet. Moreover, it employs machine - automatic winding technology, a stainless steel shaft, high - precision bearings, and a silicon carbide mechanical seal.

    The design of this motor presents several distinct advantages. Its structure is simple, which not only simplifies the manufacturing process but also boosts its reliability. Despite its small size, it provides high power. It is highly efficient, energy - saving, and has a long service life. Compared with traditional motors, it can enhance efficiency by 25%. This substantial increase in efficiency results in energy savings and a decrease in the number of solar panels needed in solar - powered systems. In other words, it can operate more efficiently with less power input, making it a cost - effective and environmentally - friendly option. Overall, this motor combines advanced technology and excellent performance, making it a top - quality choice in various applications.

    linouuqk

    TECHNICAL DATA



    ITEM





    Voltage
    (v)





    Best input
    Voltage
    (DC)



    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Open circuit
    voltage
    (VOC)
    Solar Panels Suggestion
    Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    DCQB2-25-24-210 24 30-48V 210 2 25 1”x1” <50V 36 300 1  b875ad95-7959-4d15-9b5d-0e5280da08906xw
    DCQB2-30-24-280 24 30-48V 280 2 30 1”x1” <50V 36 250 2  268a
    DCQB3-50-48-550 48 60-90V 550 3 50 1”x1” <100V 36 250 4  5sim
    DCQB3-65-72-750 72 90-120V 750 3 65 1”x1” <150V 36 330 3  62sj

    (n= 4000r/min)

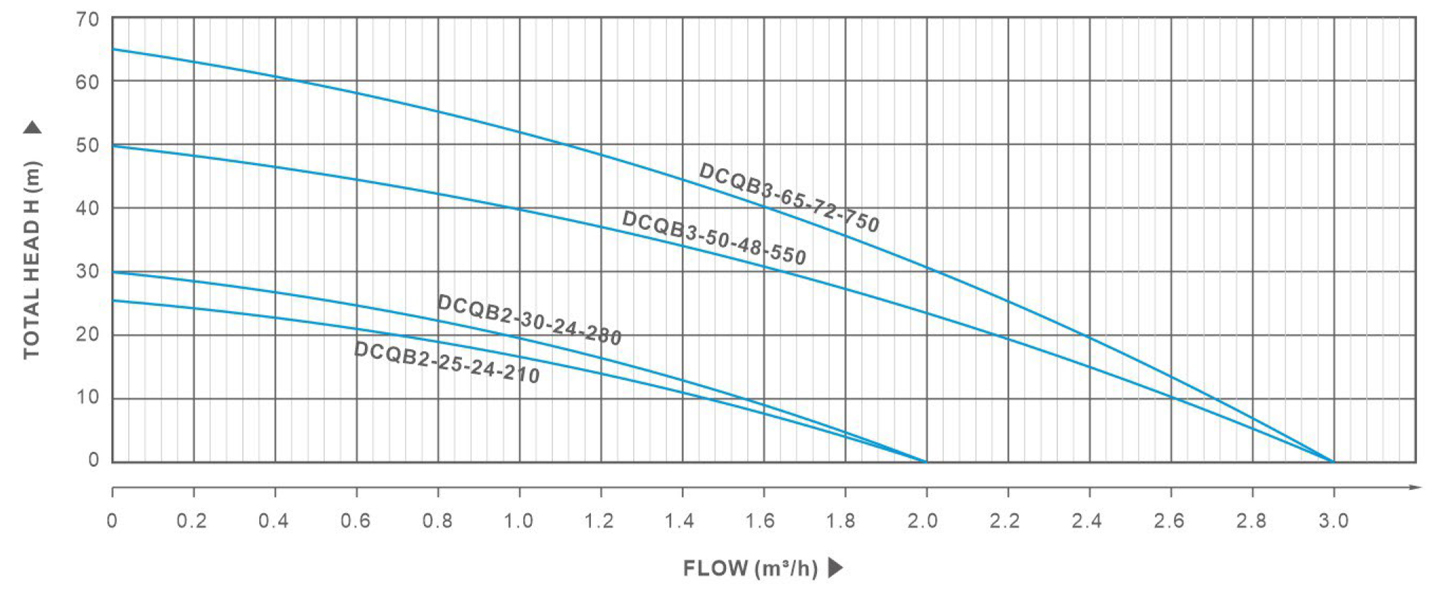

    Performance curvea2n
