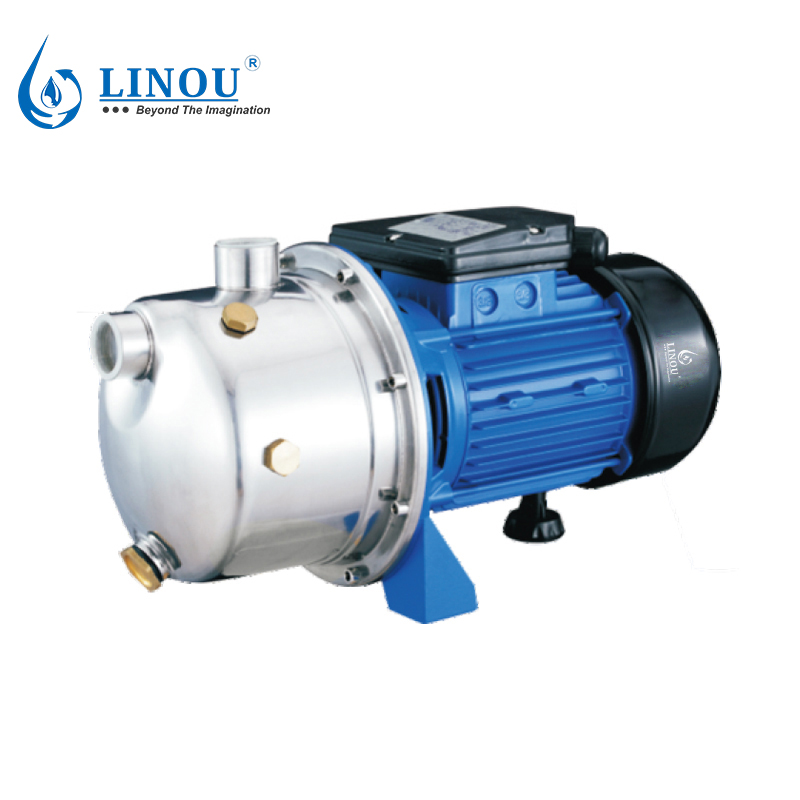

DCTP DC BRUSHLESS SOLAR SELF-PRIMING JET PUMP

Installation and use:

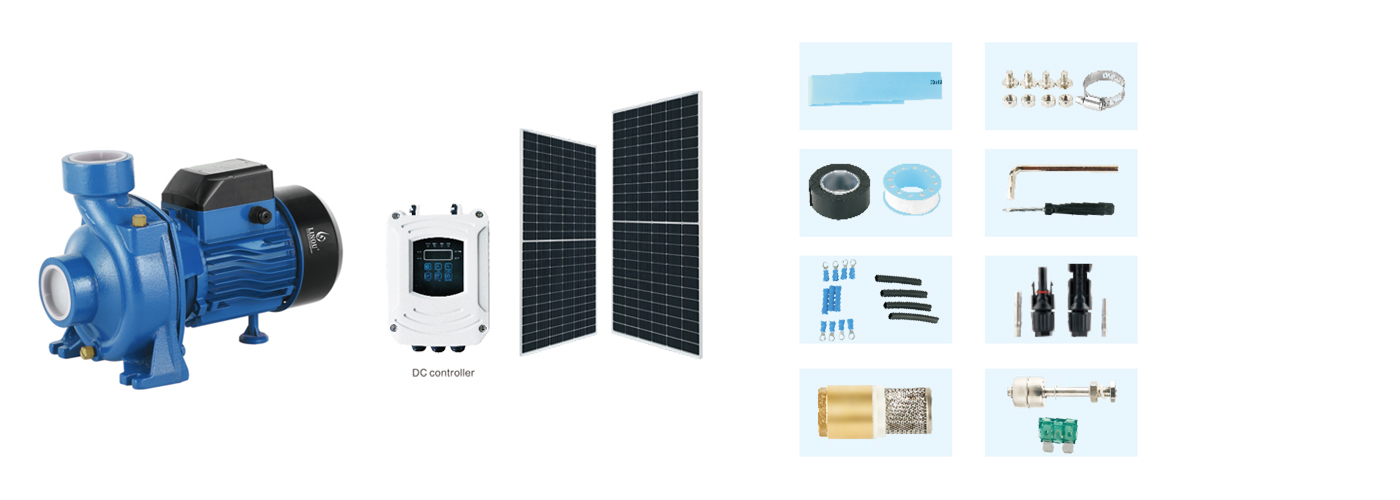

The entire solar pump device is comprised mainly of a solar panel, a control box, and a pump. Solar ground pumps play a crucial role in increasing water pressure, thereby enabling water to be transported to a higher elevation and a wider expanse. In the sunny areas across the world, solar energy emerges as the most captivating form of water supply. This is particularly true in remote regions that lack electricity. Apart from the pump and renewable energy, the solar pump also integrates all the necessary control, communication, and auxiliary devices. It is delivered as a comprehensive and complete system. This system has the remarkable ability to be combined and adapted to meet any specific needs, perfectly matching the conditions of the installation site. The diverse choice of energy sources and a wide range of performance characteristics ensure exceptional flexibility.
DC CONTROLLER WORKING ENVIRON MENT AND ELECTRICAL PROPERT
Controller and Pump Matching Method | ||||||
Controller Model | Adaptable Pump | Max.Input Current (A) |
Max .Open Circuit Voltage (V) |
MPPT Voltage Range (V) |
Working Temperature (℃) |
|
VH-24 | Rated 24V Pump | 15 | <50 | 24-36 | -15-60 | |
VH-36 | Rated 36V Pump | 15 | <50 | 24-36 | -15-60 | |
VH-48 | Rated 48V Pump | 15 | <100 | 48-72 | -15-60 | |
VH-72 | Rated 72V Pump | 15 | <150 | 72-108 | -15-60 | |
VH-110 | Rated 110V Pump | 15 | <200 | 96-144 | -15-60 |

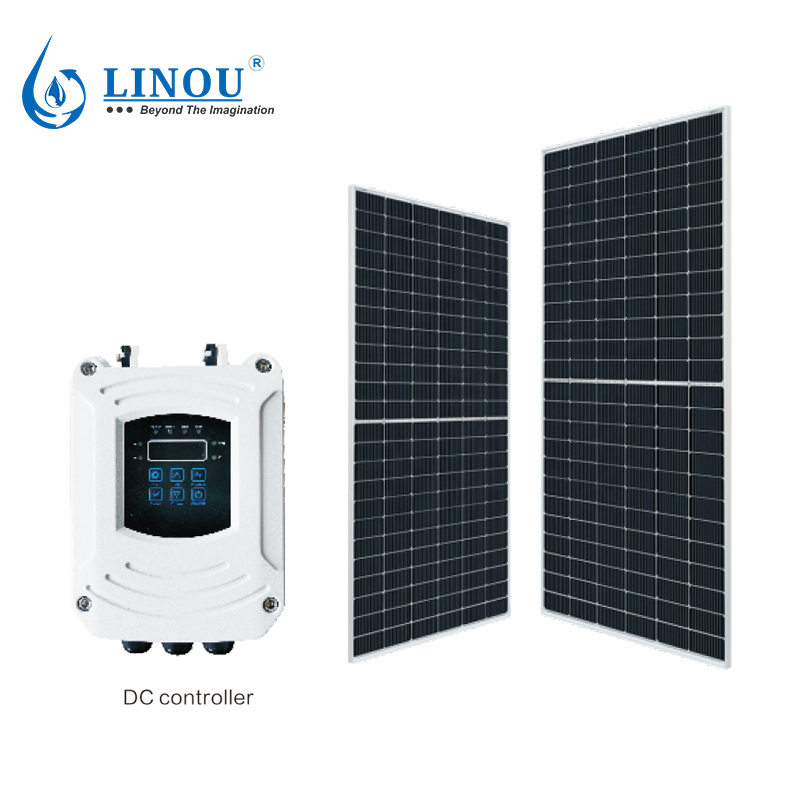

MPPT SOLAR CONTROLLER
LED display: power、voltage 、current、 speed、 fault code.
Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
Protection grade: IP65
Operating temperature: - 15 ℃ - 65 ℃
Speed regulation of control motor: 1000-4500r / min
Maximum current: 15A

Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire, 600 silicon steel sheet, machine automatic winding technology, stainless steel shaft, high-precision bearing and silicon carbide mechanical seal. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and long service life. Improve efficiency by 25%, save energy and reduce the number of solar panels.

TECHNICAL DATA
ITEM
|
Voltage
|
Best input
|
Power (w) |
Max. Flow (m3/h) |
Max. Head (m) |
Outlet (in) |
Open circuit voltage (VOC) |
Solar Panels Suggestion | |||
Voltage (V) |
Power (w) |
Quantity (pcs) |
Connection | ||||||||
DCTP3-35-48-370 | 48 | 60-90V | 370 | 3 | 35 | 1”x 1” | <50V | 36 | 250 | 2 | ![]() |
DCTP3-45-48-550 | 48 | 60-90V | 550 | 3 | 45 | 1”x 1” | <50V | 36 | 330 | 2 | ![]() |
DCTP4-50-48-750 | 48 | 60-90V | 750 | 4 | 50 | 1”x 1” | <100V | 36 | 250 | 4 | ![]() |
DCTP4-55-72-750 | 72 | 90-120V | 750 | 4 | 55 | 1”x 1” | <150V | 36 | 330 | 3 | ![]() |
(n= 4000r/min)
