DCHF DC Brushless SOLAR POWER SURFACE CENTRIFUGAL PUMPS

Installation and use:
The entire device of the solar pump is primarily made up of a solar panel, a control box, and a pump. The solar surface pump is utilized to boost water pressure, enabling water to be conveyed to higher elevations and larger areas. Operating with solar energy, it is the most appealing water supply approach in the sun-abundant regions across the world, particularly in remote areas lacking electricity. Apart from the pump and the renewable energy source, the solar pump integrates all essential controls, communication, and ancillary units, which are delivered as a single comprehensive system. This system can be combined and adjusted to meet any requirement, conforming to the conditions at the installation site. The selection of the energy source and the wide-ranging performance guarantee extreme flexibility. For instance, in some rural areas where there is limited access to electricity, the solar pump provides a reliable solution for water supply. It can efficiently pump water from a source to storage tanks or irrigation systems, enhancing the living standards and agricultural productivity of the local communities.
DC CONTROLLER WORKING ENVIRON MENT AND ELECTRICAL PROPERT
Controller and Pump Matching Method | ||||||
Controller Model | Adaptable Pump | Max.Input Current (A) |
Max .Open Circuit Voltage (V) |
MPPT Voltage Range (V) |
Working Temperature (℃) |
|
VH-24 | Rated 24V Pump | 15 | <50 | 24-36 | -15-60 | |
VH-36 | Rated 36V Pump | 15 | <50 | 24-36 | -15-60 | |
VH-48 | Rated 48V Pump | 15 | <100 | 48-72 | -15-60 | |
VH-72 | Rated 72V Pump | 15 | <150 | 72-108 | -15-60 | |
VH-110 | Rated 110V Pump | 15 | <200 | 96-144 | -15-60 |

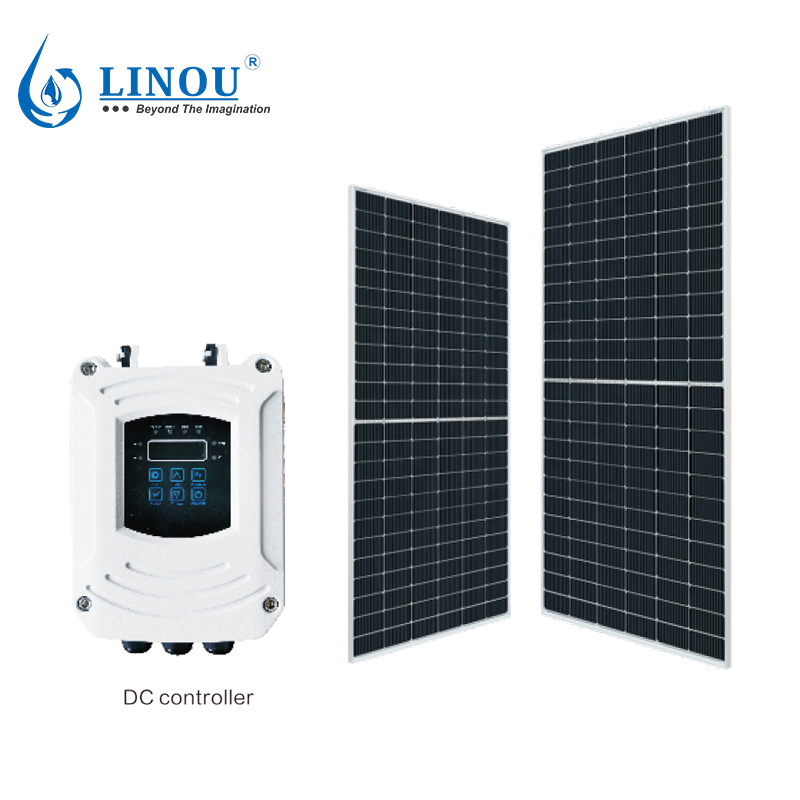

MPPT SOLAR CONTROLLER
LED display: power、voltage 、current、 speed、 fault code.
Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
Protection grade: IP65
Operating temperature: - 15 ℃ - 65 ℃
Speed regulation of control motor: 1000-4500r / min
Maximum current: 15A

Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire, 600 silicon steel sheet, machine automatic winding technology, stainless steel shaft, high-precision bearing and silicon carbide mechanical seal. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and long service life. Improve efficiency by 25%, save energy and reduce the number of solar panels.

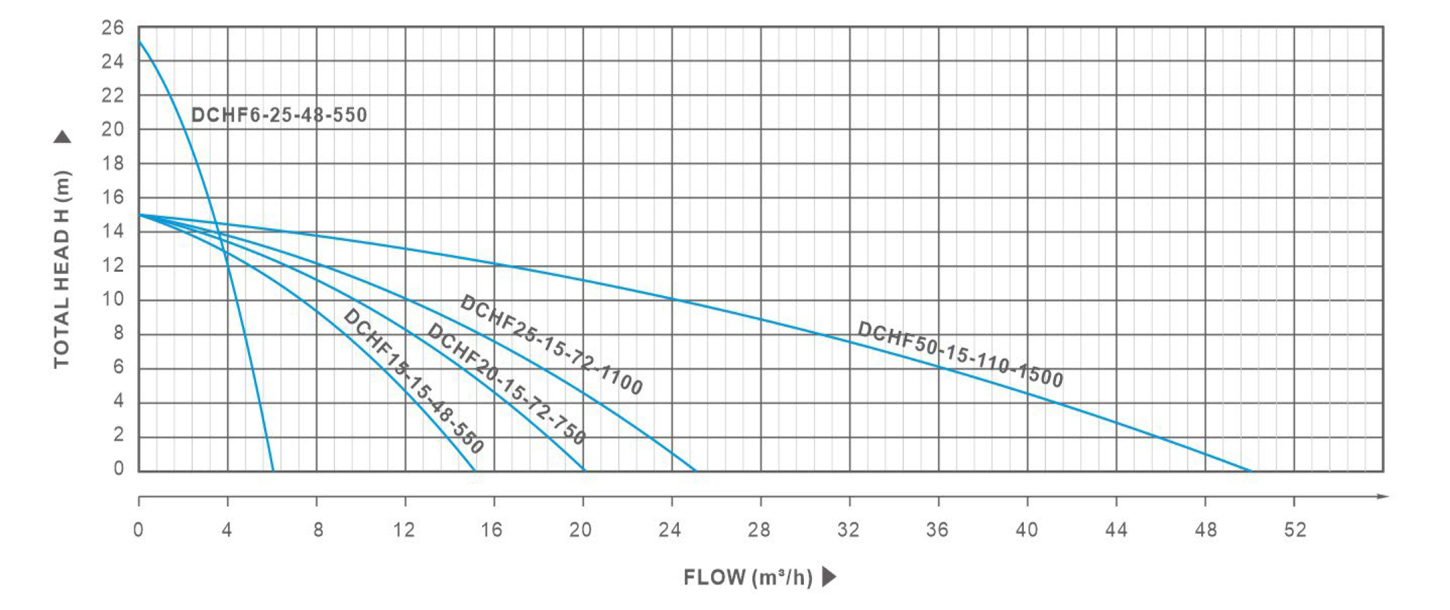

TECHNICAL DATA
ITEM
|
Voltage
|
Best input
|
Power (w) |
Max. Flow (m3/h) |
Max. Head (m) |
Outlet (in) |
Open circuit voltage (VOC) |
Solar Panels Suggestion | |||
Voltage (V) |
Power (w) |
Quantity (pcs) |
Connection | ||||||||
DCHF6-25-48-550 | 48 | 60-90V | 550 | 6 | 25 | 1”x1” | <100V | 36 | 250 | 4 | ![]() |
DCHF15-15-48-550 | 48 | 60-90V | 550 | 15 | 15 | 1.5”x1.5” | <100V | 36 | 250 | 4 | ![]() |
DCHF20-15-72-750 | 72 | 90-120V | 750 | 20 | 15 | 2”x2” | <150V | 36 | 330 | 3 | ![]() |
DCHF25-15-72-1100 | 72 | 90-120V | 1100 | 25 | 15 | 2”x2” | <150V | 36 | 300 | 6 | ![]() |
DCHF50-15-110-1500 | 110 | 110-150V | 1500 | 50 | 15 | 3”x3” | <200V | 36 | 300 | 8 | ![]() |
(n= 4000r/min)
