DC Brushless Solar Pool Pumps DCLP

Solar Ground Pump

DCLP

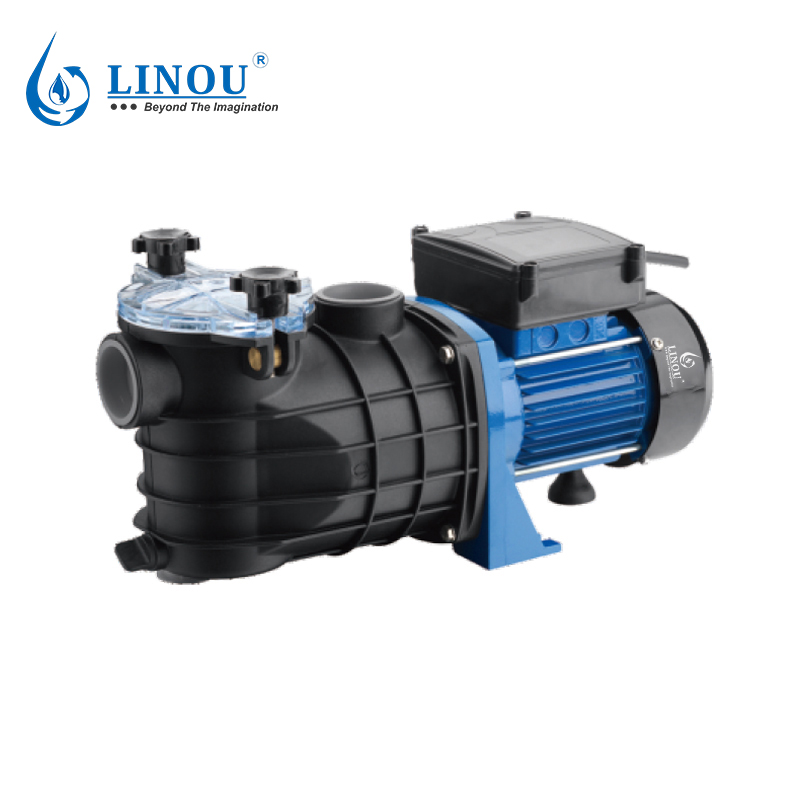

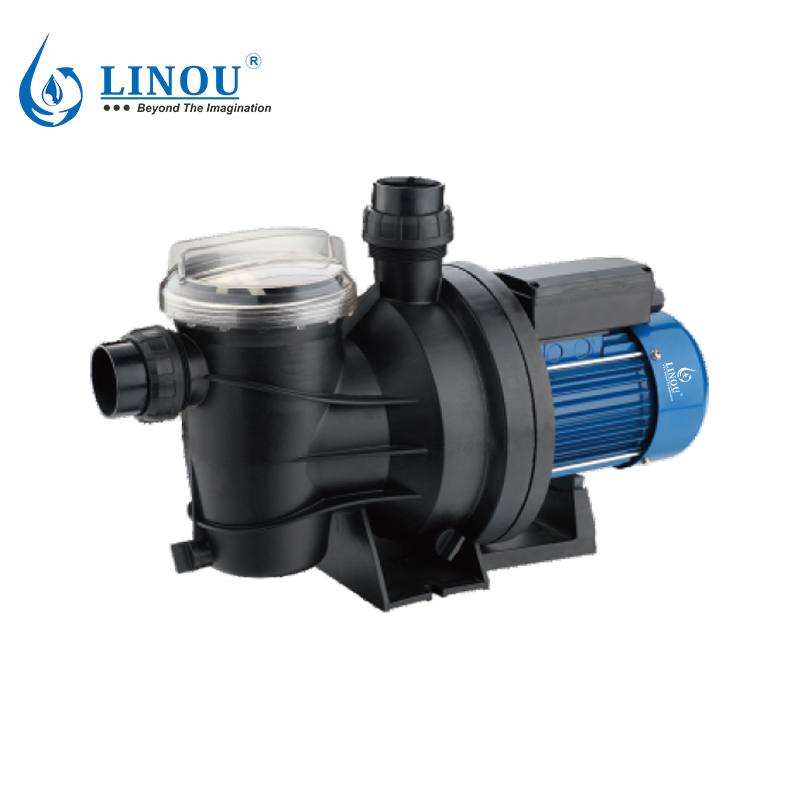

DCLP DC Brushless Solar Pool Pumps: Solar pool pump. The fluid part of the pump is made of food grade plastic. The filter centrifugal pump is designed to clean the swimming pool and is suitable for transporting large amounts of water at low head (up to 45 ° C). The pump should be installed in a closed environment or at least away from bad weather. The pump requires fewer solar panels and batteries, which also reduces the installation cost of the pump.

    DCLP DC Brushless Solar Pool Pumps: Solar pool pump

    DCLP DC Brushless Solar Pool Pumps: Solar pool pump

    Installation and use:

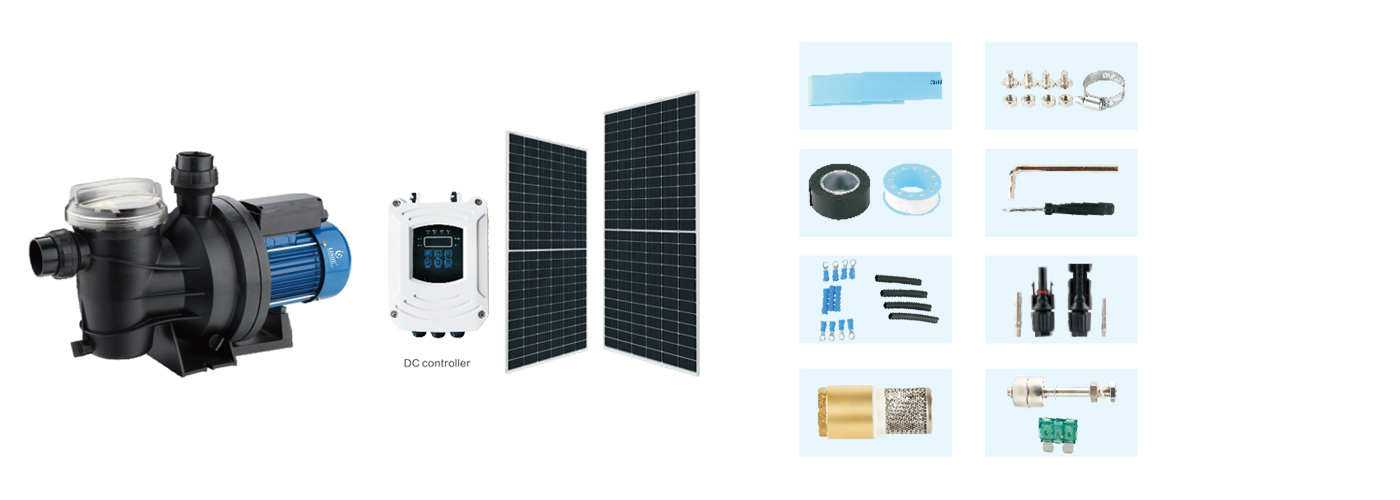

    The whole solar pump device is mainly composed of solar panel, control box and pump. Solar surface pumps are used to increase water pressure. Allow water to be transported to a higher and wider range. Solar energy is the most attractive form of water supply in sunny areas of the world, especially in remote areas lacking electricity. In addition to pumps and renewable energy, the solar pump also integrates all necessary control, communication and auxiliary equipment and is delivered as a complete system. The system can be combined and adapted to any needs, matching the conditions of the installation site. The choice of energy and a wide range of performance ensure great flexibility.

    DC CONTROLLER WORKING ENVIRON MENT AND ELECTRICAL PROPERT

    Controller and Pump Matching Method

    Controller Model Adaptable Pump Max.Input Current
    (A)
    Max .Open Circuit Voltage
    (V)
    MPPT Voltage Range
    (V)
    Working Temperature
    (℃)
    VH-24 Rated 24V Pump 15 <50 24-36 -15-60
    VH-36 Rated 36V Pump 15 <50 24-36 -15-60
    VH-48 Rated 48V Pump 15 <100 48-72 -15-60
    VH-72 Rated 72V Pump 15 <150 72-108 -15-60
    VH-110 Rated 110V Pump 15 <200 96-144 -15-60
    aeg03

    MPPT SOLAR CONTROLLER

    LED display: power、voltage 、current、 speed、 fault code.
    Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display
    Protection grade: IP65
    Operating temperature: - 15 ℃ - 65 ℃
    Speed regulation of control motor: 1000-4500r / min
    Maximum current: 15A

    ade2u2e

    Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire, 600 silicon steel sheet, machine automatic winding technology, stainless steel shaft, high-precision bearing and silicon carbide mechanical seal. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and long service life. Improve efficiency by 25%, save energy and reduce the number of solar panels.

    linouuqk

    TECHNICAL DATA



    ITEM





    Voltage
    (v)





    Best input
    Voltage
    (DC)



    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Open circuit
    voltage
    (VOC)
    Solar Panels Suggestion
    Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    DCLP15-15-48-500 48 60-90V 500 15 15  2”x  2” <100V 36 330 2  1azxb
    DCLP20-18-72-900 72 90-120V 900 20 18 2”x  2” <150V 36 300 4  45mc
    DCLP25-20-72-1200 72 90-120V 1200 25 20 3”x 3” <150V 36 300 6  9ii4
    DCLP25-22-110-1200 110 110-150V 1200 25 22  3”x 3” <200V 36 300 6  8ll1

    (n= 4000r/min)

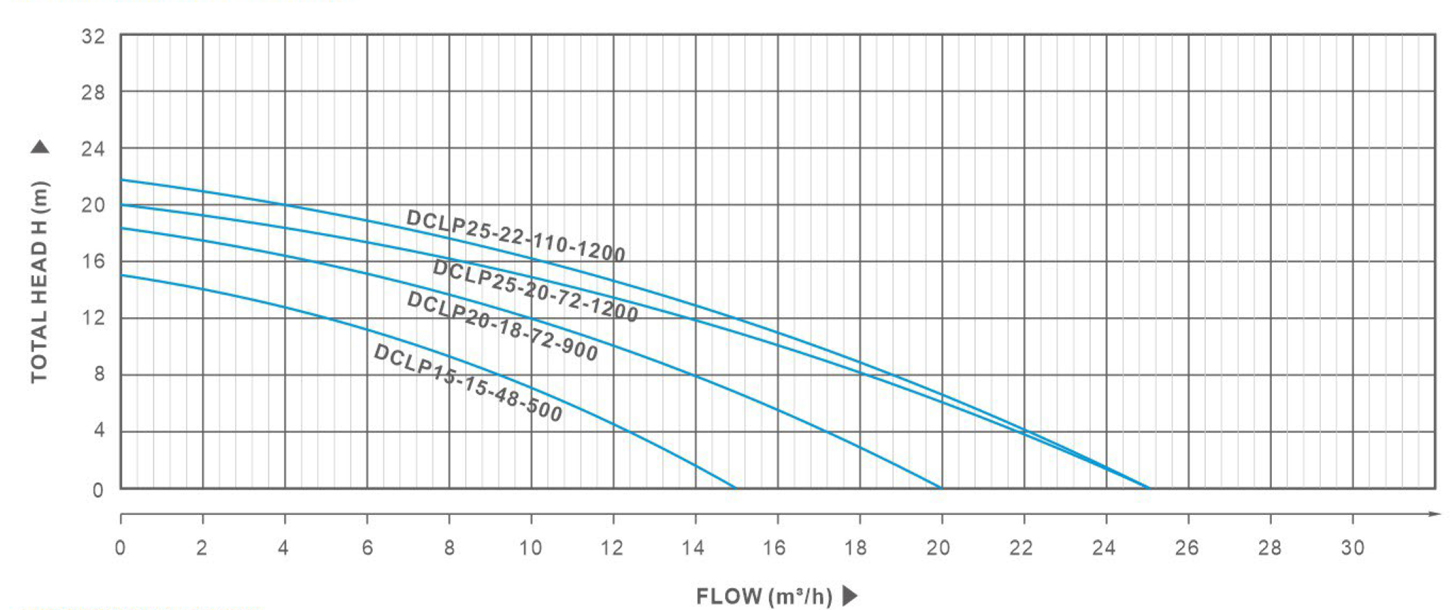

    Performance curveei9
