Brushless Deep Solar Well PumpS 4DCQJ-A/D

4-inch AC / DC Solar Deep Well Pump

4DCQJ-A/D

4DCQJ-A/D Brushless Deep Solar Well PumpS:4-inch AC / DC impeller type solar deep well pump (outer diameter 96mm), the impeller adopts plastic PC,
Main features:

1) Single AC power supply (AC only)

2) Single DC power supply (only solar panels)

3) Economical model: AC and DC power supply at the same time (solar panel is preferred)

4) High end model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can be 1W) can increase the mobile Internet function of mobile app

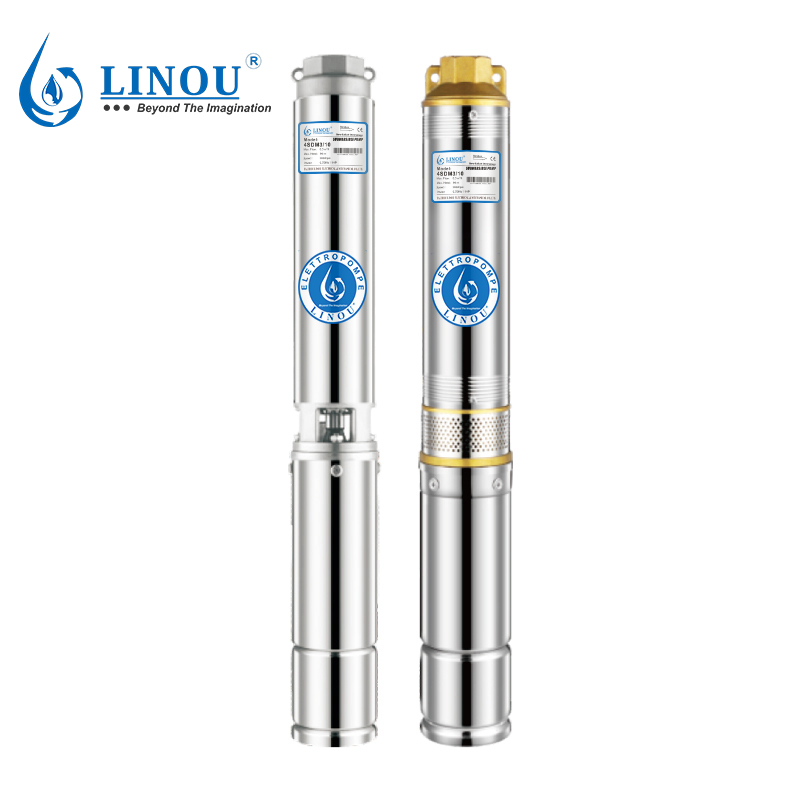

    4" AC/DC Brushless Deep Solar Well PumpS

    4" AC/DC Brushless Deep Solar Well PumpS

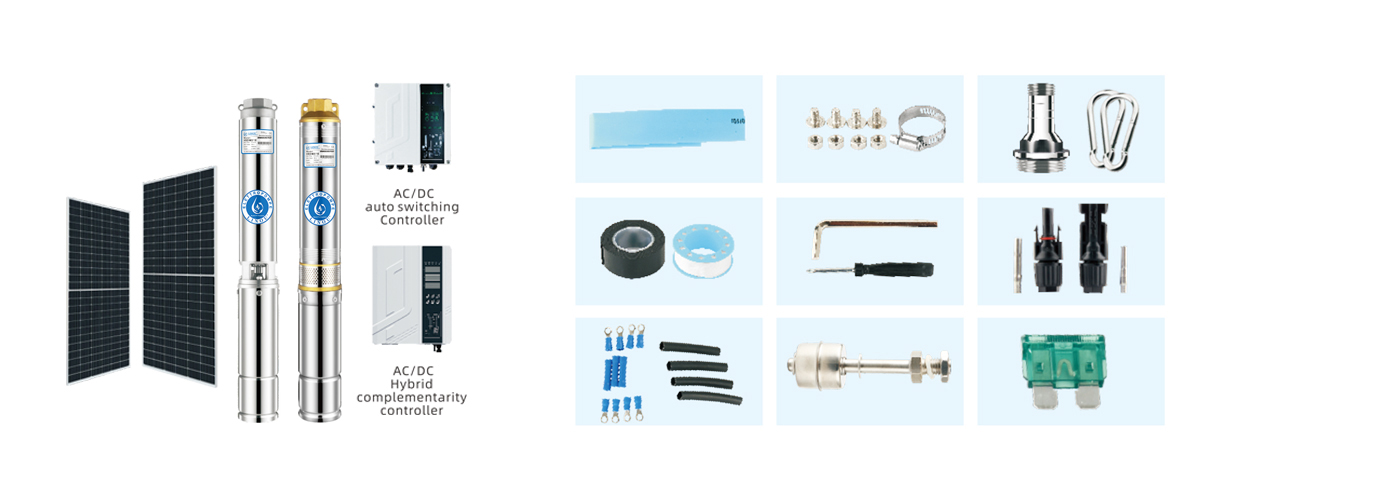

    Installation and use:

    The whole solar pump device is mainly composed of solar panel, control box and pump. Submersible solar pump uses solar energy to pump water and deliver water. This is a submersible pump. This is the most attractive way to supply water in sunny areas in the world today, especially in remote areas lacking electricity and electricity. It is mainly used for domestic water supply, agricultural irrigation, garden irrigation, etc. In addition to water pumps and renewable energy sources, solar water pumps also integrate all necessary control, communication and auxiliary equipment and are delivered as a complete system. The system can be combined and adapted to any needs, matching the conditions of the installation site. The choice of energy and a wide range of performance ensure great flexibility.

    AC/DC AUTOMATIC SWITCHING CONTROLLER

    WORKING ENVIRONMENT AND ELECTRICALPROPERT

    Controller and Pump Matching Method

    Controller Model Adaptable Pump DC Max.Input Current
    (A)
    AC Max.Input Current
    (A)
    DC Input Voltage
    (V)
    AC Input Voltage
    (V)
    Working Temperature
    (℃)
    VH-AC220V/DC110V Rated AC220V/DC110V Pump 12 20 108-410 100-264 -15-60
    VH-AC220V/DC150V Rated AC220V/DC150V Pump 12 20 108-410 100-264 -15-60
    VH-AC220V/DC200V Rated AC220V/DC200V Pump 12 20 108-410 100-264 -15-60
    VH-AC220V/DC300V Rated AC220V/DC300V Pump 12 20 108-410 100-264 -15-60

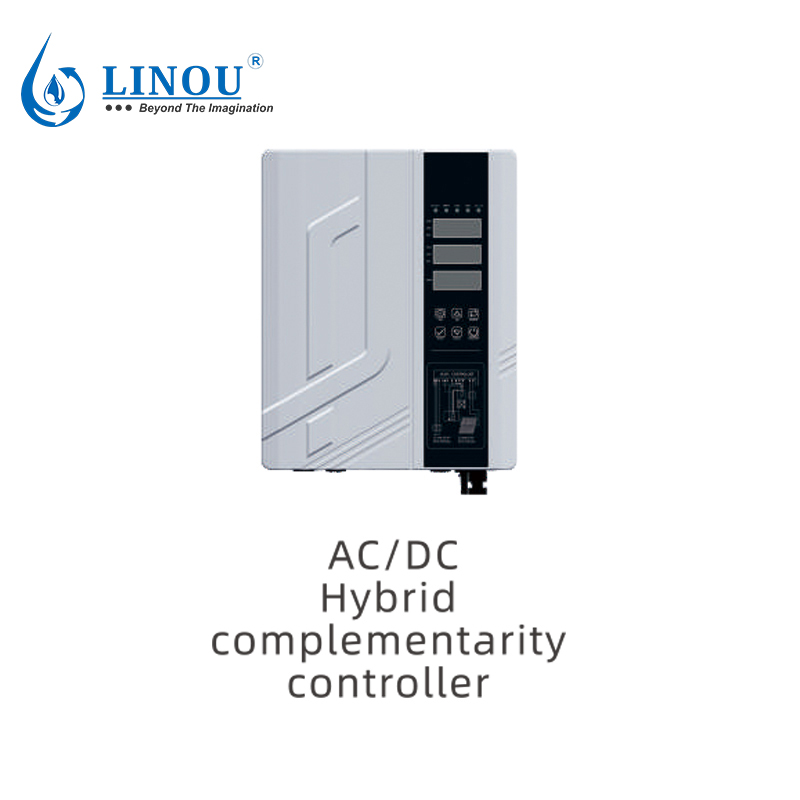

    AC/DC HYBRID COMPL EMENTARITY CONTROLLER

    WORKING ENVIRONMENT AND ELECTRICALPROPERTY

    Controller and Pump Matching Method

    Controller Model Adaptable Pump DC Max.Input Current
    (A)
    AC Max.Input Current
    (A)
    DC Input Voltage
    (V)
    AC Input Voltage
    (V)
    Working Temperature
    (℃)
    VH-AC220V/DC110V Rated AC220V/DC110V Pump 12 15 80-410 150-264 -15-60
    VH-AC220V/DC150V Rated AC220V/DC150V Pump 12 15 80-410 150-264 -15-60
    VH-AC220V/DC200V Rated AC220V/DC200V Pump 12 15 80-410 150-264 -15-60
    VH-AC220V/DC300V Rated AC220V/DC300V Pump 12 15 80-410 150-264 -15-60
    ga2v40
    age3yh

    MPPT SOLAR CONTROLLER

    LED display: AC voltage DC voltage AC current DC current motor speed fault code.

    Intelligent control: automatic start and stop function of water pump, water shortage protection function of water pump, automatic control of water level of water tower (external floating ball switch). Solar maximum tracking and pump fault display

    Automatic AC / DC switching: automatic AC switching when the solar illumination is less than 500W.

    AC / DC hybrid complementary model: full power AC / DC automatic hybrid compensation (the minimum power of solar panel can reach 1W) can increase the mobile Internet function of mobile applications

    Protection grade: IP65

    Operating temperature: - 15 ℃ - 65 ℃

    Speed regulation of control motor: 1000-4500r / min

    Maximum current: DC 12a, AC 20A

    abge2y1t

    Permanent magnet DC brushless synchronous motor: the motor adopts n40sh rare earth strong magnet, 180 ℃ high temperature enamelled wire and 600 silicon steel sheet. The utility model has the advantages of simple structure, high reliability, small volume, high power, high efficiency, energy saving and longer service life. Machine automatic winding technology. Stainless steel shaft, high precision bearing, silicon carbide mechanical seal. Improve efficiency by 25%, save energy and reduce the number of solar panels.

    linouuqk

    TECHNICAL DATA



    ITEM



    Voltage
    (v)

    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Lnput Voltage Solar Panels Suggestion
    (AC) (DC) (DC) (AC) Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    4DCQJ7-57-110-750-A/D 220V 110V 750 7 57 1.25”-1” 80V-410 150V-264V 36 340 3  3a3sk
    4DCQJ7-84-150-1100-A/D 220V 150V 1100 7 84 1.25”-1” 80V-410 150V-264V 36 340 4  4a1ma
    4DCQJ7-115-150-1300-A/D 220V 150V 1300 7 115 1.25”-1”  80V-410 150V-264V 36 340 5  age1-35wk
    4DCQJ7-144-200-1500-A/D 220V 200V 1500 7 144 1.25”-1” 80V-410 150V-264V 36 340 6  rega1-4ibn
    4DCQJ7-170-300-2200-A/D 220V 300V 2200 7 170 1.25”-1” 80V-410 150V-264V 36 340 8  age1-5n9w

    PERFORMANCE TABLE

    ITEM

    Motor Power

    Capacity and head Length
    L /min 0 17 33 50 58 67 83 100 117
    m3/h 0 1 2 3 3.5 4 5 6 7 mm
    4DCQJ7-57-110-750-A/D

    Head

    (m)

    57 56 53 50 46 43 36 27 16 Ø96X562
    4DCQJ7-84-150-1100-A/D 84 77 74 72 67 60 49 35 20 Ø96X614
    4DCQJ7-115-150-1300-A/D 115 105 87 80 71 64 43 38 25 Ø96X666
    4DCQJ7-144-200-1500-A/D 144 120 99 88 80 72 53 43 28 Ø96X718
    4DCQJ7-170-300-2200-A/D 170 144 118 105 96 86 63 51 33 Ø96X790

    TECHNICAL DATA

    ITEM

    Voltage
    (v)

    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Lnput Voltage Solar Panels Suggestion
    (AC) (DC) (DC) (AC) Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    4DCQJ9-45-110-750-A/D 220V 110V 750 9 45 2”-1.5” 80V-410V 150V-264V 36 340 3  3a5hd
    4DCQJ9-58-150-1100-A/D 220V 150V 1100 9 58 2”-1.5” 80V-410V 150V-264V 36 340 4  4aj7p
    4DCQJ9-71-150-1300-A/D 220V 150V 1300 9 71 2”-1.5” 80V-410V 150V-264V 36 340 5  abr1-3xso
    4DCQJ9-95-200-1500-A/D 220V 200V 1500 9 95 2”-1.5” 80V-410V 150V-264V 36 340 6  age1-4n51
    4DCQJ9-125-300-2200-A/D 220V 300V 2200 9 125 2”-1.5” 80V-410V 150V-264V 36 340 8  abge1-5kdd

    PERFORMANCE TABLE

    ITEM

    Motor Power

    Capacity and head Length
    L /min 0 17 33 50 58 83 100 117 133 150
    m3/h 0 1 2 3 4 5 6 7 8 9 mm
    4DCQJ9-45-110-750-A/D

    Head

    (m)

    45 41 39 36 35 28 23 18 12 7 Ø96X584
    4DCQJ9-58-150-1100-A/D 58 53 50 43 39 33 27 21 15 8 Ø96X584
    4DCQJ9-71-150-1300-A/D 71 67 63 54 48 42 33 26 17.5 9 Ø96X615
    4DCQJ9-95-200-1500-A/D 95 92 90 71 64 57 43 33 26 12 Ø96X647
    4DCQJ9-125-300-2200-A/D 125 118 115 106 96 86 65 50 39 18 Ø96X761

    TECHNICAL DATA



    ITEM



    Voltage
    (v)

    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Lnput Voltage Solar Panels Suggestion
    (AC) (DC) (DC) (AC) Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    4DCQJ13-38-110-750-A/D 220V 110V 750 13 38 2”- 2” 80V-410V 150V-264V 36 340 3  3a33h
    4DCQJ13-45-150-1100-A/D 220V 150V 1100 13 45 2”- 2” 80V-410V 150V-264V 36 340 4  4aow8
    4DCQJ13-65-150-1300-A/D 220V 150V 1300 13 65 2”- 2” 80V-410V 150V-264V 36 340 5  ahe1-379q
    4DCQJ13-80-200-1500-A/D 220V 200V 1500 13 80 2”- 2” 80V-410V 150V-264V 36 340 6  e1-4ovk
    4DCQJ13-100-300-2200-A/D 220V 300V 2200 13 100 2”- 2” 80V-410V 150V-264V 36 340 8  srhnsn1-5caa

    PERFORMANCE TABLE

    ITEM

    Motor Power

    Capacity and head Length
    L /min 0 33 67 100 133 150 167 200 217 233
    m3/h 0 2 4 6 8 9 10 12 13 14 mm
    4DCQJ13-38-110-750-A/D

    Head

    (m)

    38 34 35 32 26 22 18 13 9 5 Ø96X561
    4DCQJ13-45-150-1100-A/D 45 44 43 37 28 24 19 14 10 7 Ø96X596
    4DCQJ13-65-150-1300-A/D 65 60 48 42 32 28 24 20 16 12 Ø96X630
    4DCQJ13-80-200-1500-A/D 80 72 58 51 39 34 29 24 20 15 Ø96X665
    4DCQJ13-100-300-2200-A/D 100 96 75 66 50 42 36 32 25 19 Ø96X720

    TECHNICAL DATA



    ITEM



    Voltage
    (v)

    Power
    (w)
    Max.
    Flow
    (m3/h)
    Max.
    Head
    (m)
    Outlet
    (in)
    Lnput Voltage Solar Panels Suggestion
    (AC) (DC) (DC) (AC) Voltage
    (V)
    Power
    (w)
    Quantity
    (pcs)
    Connection
    4DCQJ16-45-110-750-A/D 220V 110V 750 16 45 2”- 2” 80V-410V 150V-264V 36 340 3  3au4k
    4DCQJ16-50-150-1100-A/D 220V 150V 1100 16 50 2”- 2” 80V-410V 150V-264V 36 340 4  4a21w
    4DCQJ16-60-150-1300-A/D 220V 1500V 1300 16 60 2”- 2” 80V-410V 150V-264V 36 340 5  ult1-3q7c
    4DCQJ16-70-200-1500-A/D 220V 200V 1500 16 70 2”- 2” 80V-410V 150V-264V 36 340 6  nrt1-4ur8
    4DCQJ16-80-300-2200-A/D 220V 300V 2200 16 80 2”- 2” 80V-410V 150V-264V 36 340 8  dtmnd1-5mdk

    PERFORMANCE TABLE

    ITEM

    Motor Power

    Capacity and head Length
    L /min 0 67 100 133 150 167 200 217 233 250
    m3/h 0 4 6 8 9 10 12 13 14 15 mm
    4DCQJ16-45-110-750-A/D

    Head

    (m)

    45 38 35 31 28 25 20 16 14 10 Ø96X561
    4DCQJ16-50-150-1100-A/D 50 45 40 35 30 28 24 19 16 12 Ø96X596
    4DCQJ16-60-150-1300-A/D 60 52 45 39 33 31 28 22 18 14 Ø96X630
    4DCQJ16-70-200-1500-A/D 70 61 56 48 43 39 32 26 22 16 Ø96X665
    4DCQJ16-80-300-2200-A/D 80 72 67 60 54 590 39 31 26 18 Ø96X720

    (n= 4000r/min)

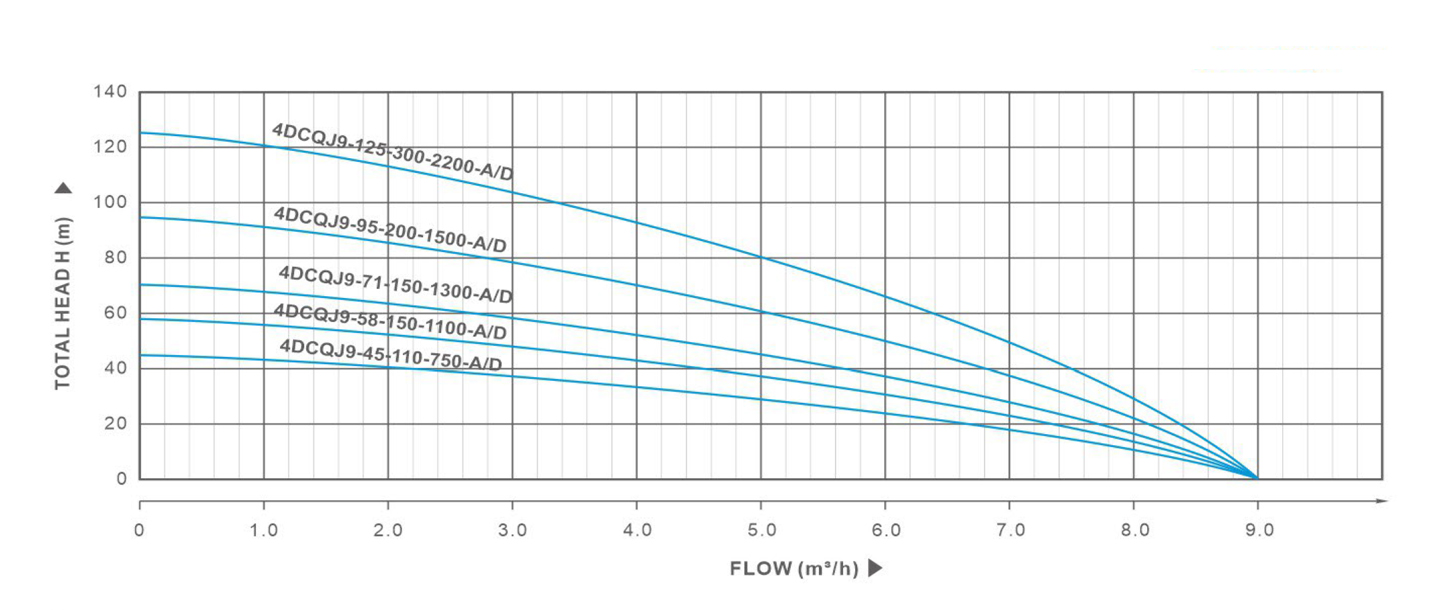

    Performance curveulb

    (n= 4000r/min)

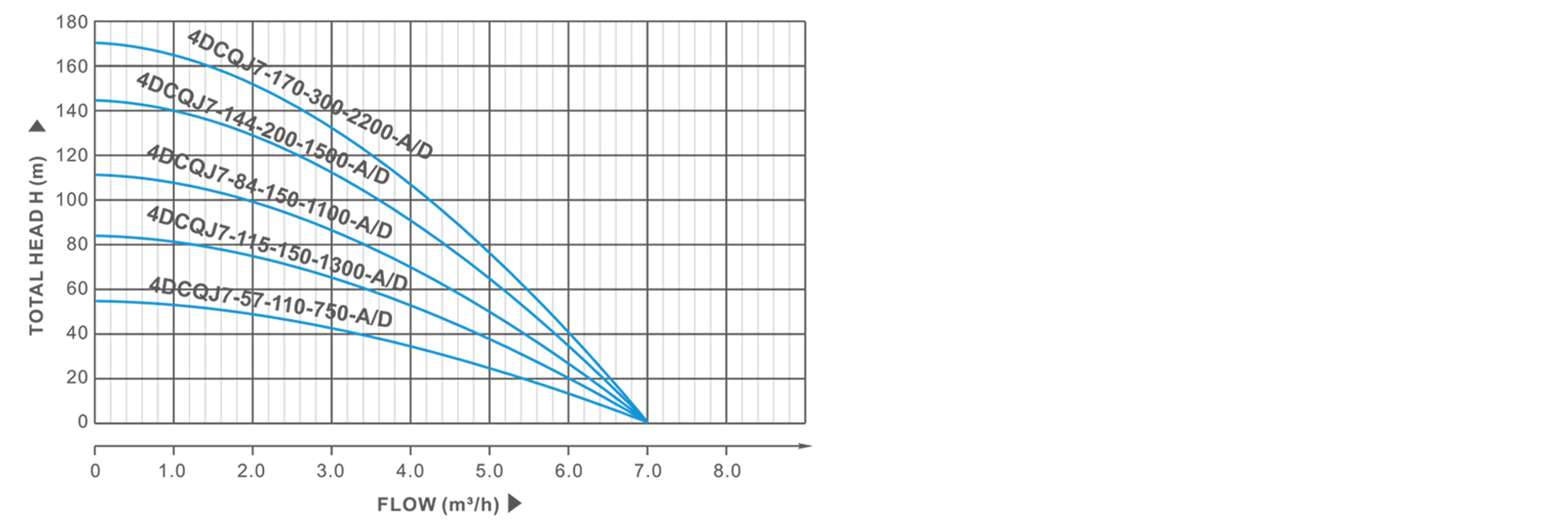

    Performance curve2x0z

    (n= 4000r/min)

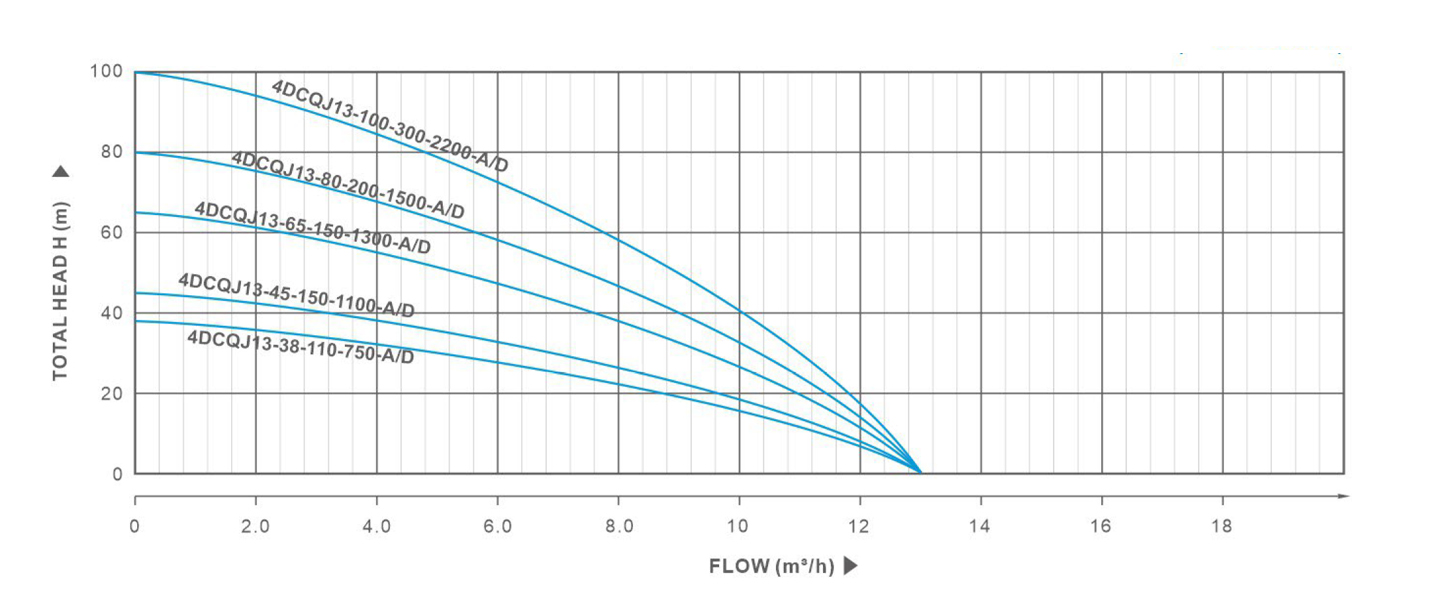

    Performance curve3sz9

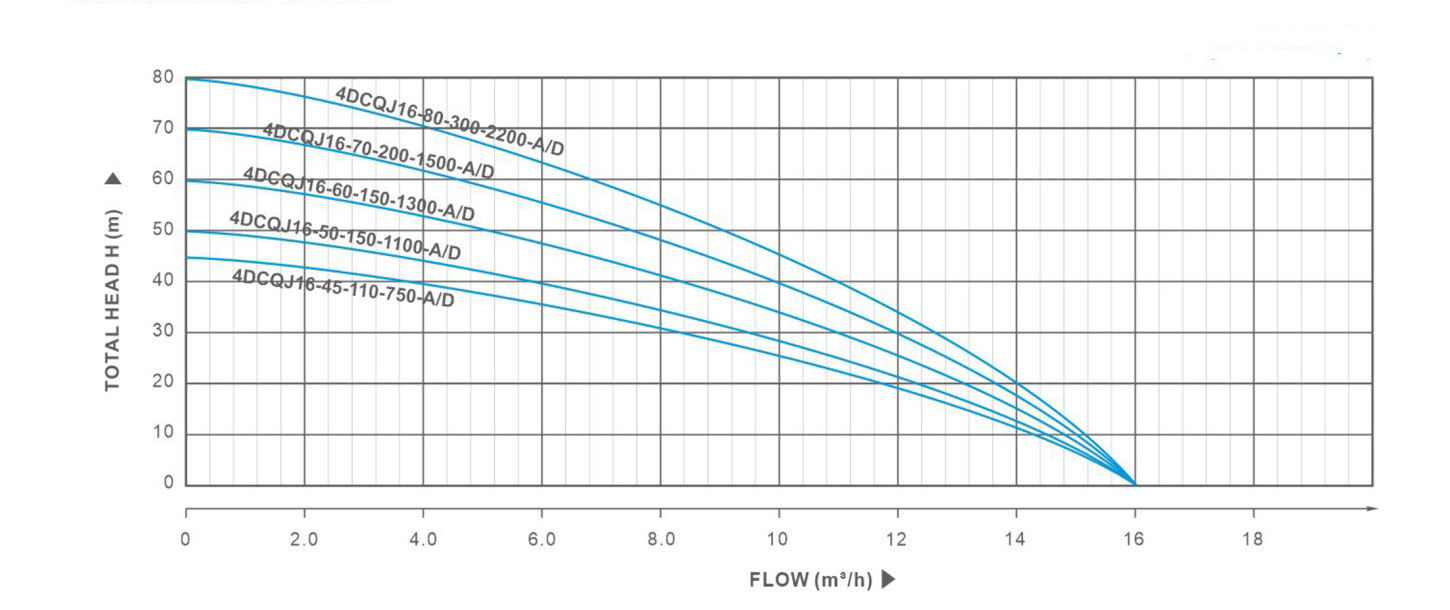

    (n= 4000r/min)
