DC BILGE PUMP
FEATURES
● All-in-one pump and switch-no external float switch needed
● Fully automatic bilge pump
● Contains no mercury
● Pump turns on at 50mm water level and turns off at 20mm water level
● Will not pump oil-straight motor oil that enters the bilge will not turn the pump on lgnition protected and corrosion resistant stainless steel shaft
● Size: 600GPH (2271LPH) ,750GPH ( 2838LPH) in 12 and 24 volt versions
● Includes a detachable base for easier cleaning and faster service
● Anti-fouling impeller
● Quiet and vibrationless operation

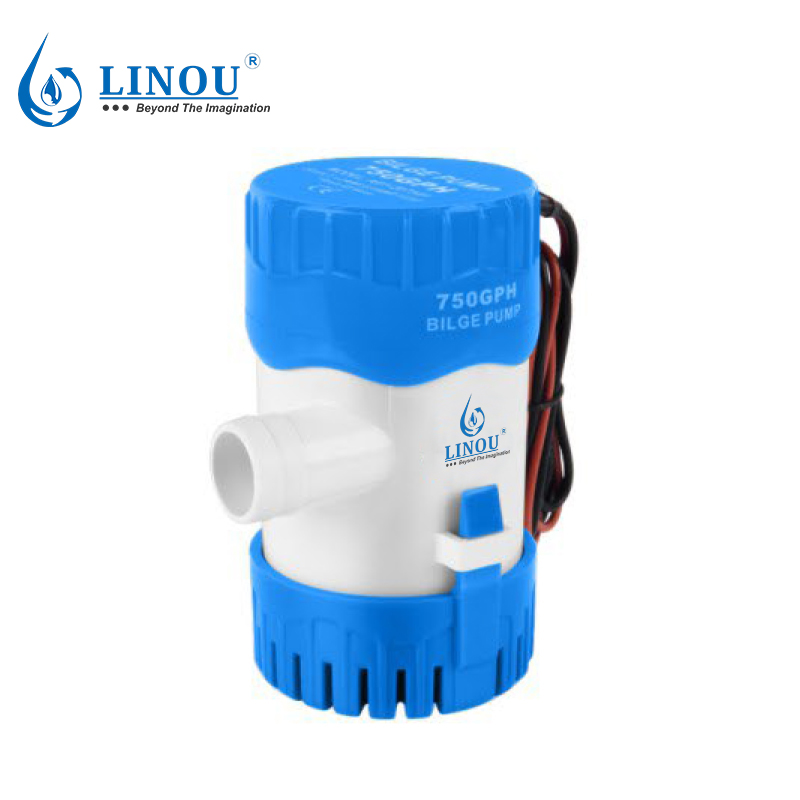

FEATURES
● Pump and switch are stand alone products
● Traditional operation by float switch
● Compact, efficient, long life motors
● Run dry capable, saltwater safe, quiet industry standard mounting pattern
● Stainless steel shaft, anti-airlock protection, exclusive moisture tight seals
● Freshwater and saltwater compatible
● Size: 350, 500,750gph in 12and 24 volt versions
● Quick -disconnect base plate for easy installation and cleaning
● Entirely submersible and marine grade blocked wiring

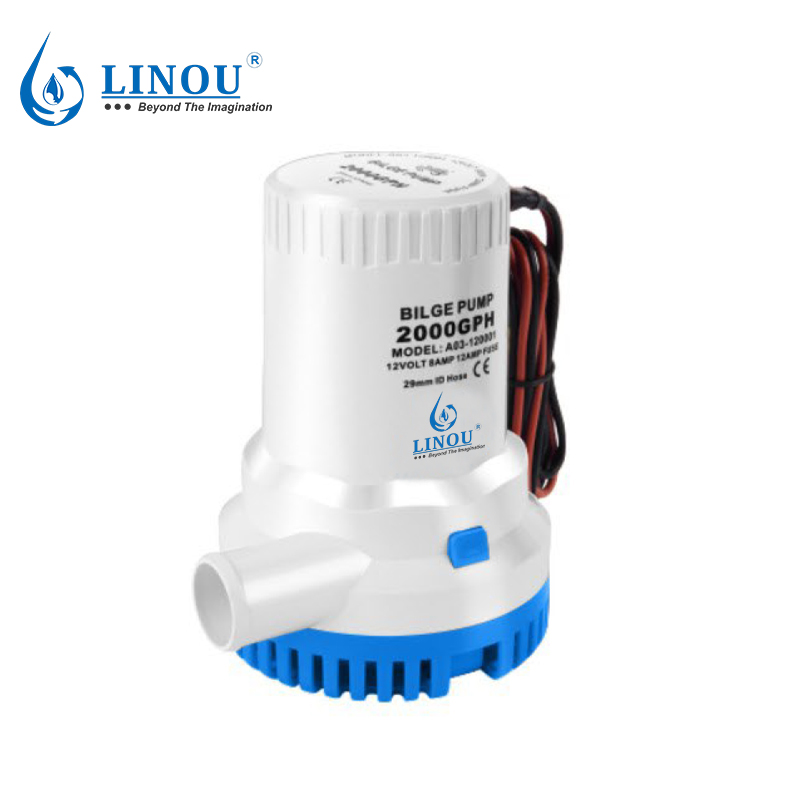

FEATURES
● Pump and switch are stand alone products
● Traditional operation by float switch
● Compact, efficient, long life motors
● Run dry capable, saltwater safe quiet, industry standard mounting pattern
● Stainless steel shaft, anti-airlock protection, exclusive moisture tight seals
● Freshwater and saltwater compatible
● Size: 1 500/2000gph in 12and 24 volt versions
● Quick-disconnect base plate for easy installation and cleaning
● Entirely submersible and marine grade blocked wiring

Model | volt | Flow rate | head | ampere | Hose port | lead | Gift box size | N.G/ G.W |
(V) | (GPH) | (m) | (A) | (mm) | (KG) | |||
A02-106001 | 12 | 600 | 2.5 | 2 | ID 19mm/3/4" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-206001 | 24 | 600 | 2.5 | 1.5 | ID 19mm/3/4" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-107501 | 12 | 750 | 3 | 2.5 | ID 19mm/3/4" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-207501 | 24 | 750 | 3 | 1.4 | ID 19mm/3/4" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-109501 | 12 | 950 | 3.5 | 3.1 | ID29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-209501 | 24 | 950 | 3.5 | 1.7 | ID 29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-111001 | 12 | 1100 | 4 | 3.2 | ID 29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
A02-211001 | 24 | 1100 | 4 | 1.8 | ID 29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.51/0.57 |
Model | volt | Flow rate | head | ampere | Hose port | lead | Gift box size | N.G/ G.W |
(V) | (GPH) | (m) | (A) | (mm) | (KG) | |||
A01-103501 | 12 | 350 | 1.5 | 0.8 | ID 19mm/3/4" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-105001 | 12 | 500 | 2 | 1.8 | ID 19mm/3/4" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-205001 | 24 | 500 | 2 | 1 | ID 19mm/3/4" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-107501 | 12 | 750 | 3 | 2.4 | ID 19mm/3/4" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-207501 | 24 | 750 | 3 | 1.2 | ID 19mm/3/4" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-111001 | 12 | 1100 | 4 | 3.2 | ID 29mm/1-1/8" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
A01-211001 | 24 | 1100 | 4 | 1.7 | ID 29mm/1-1/8" | 18AEG 1m | 90x100x118 | 0.36/0.40 |
Model | volt | Flow rate | head | ampere | Hose port | lead | Gift box size | N.G/ G.W |
(V) | (GPH) | (m) | (A) | (mm) | (KG) | |||
A06-115001 | 12 | 1500 | 4 | 6 | ID 29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.67/0.72 |
A06-215001 | 24 | 1500 | 4 | 3.5 | ID 29mm/1-1/8" | 18AEG 1m | 90x155x115 | 0.67/0.72 |
A03-115001 | 12 | 1500 | 5 | 7 | ID 29mm/1-1/8" | 14AEG 1m | 110x153x130 | 1.13/1.21 |
A03-215001 | 24 | 1500 | 5 | 3.5 | ID 29mm/1-1/8" | 14AEG 1m | 110x153x130 | 1.13/ 1.21 |
A03-120001 | 12 | 2000 | 6 | 8 | ID 29mm/1-1/8" | 14AEG 1m | 110x153x130 | 1.13/1.21 |
A03-220001 | 24 | 2000 | 6 | 4 | ID 29mm/1-1/8" | 14AEG 1m | 110x153x130 | 1.13/1.21 |

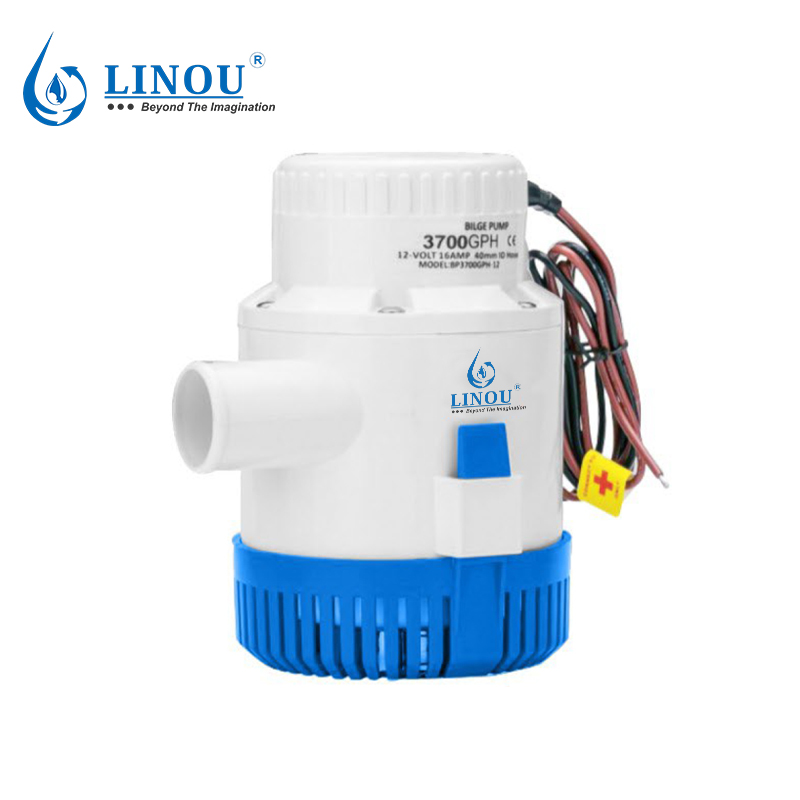

Model | volt | Flow rate | head | ampere | Hose port | lead | Gift box size | N.G/ G.W |
(V) | (GPH) | (m) | (A) | (mm) | (KG) | |||
BP1-G3000-01 | 12 | 3000 | 8 | 10 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP2-G3000-01 | 24 | 3000 | 8 | 6 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP1-G3500-01 | 12 | 3500 | 8 | 12 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP2-G3500-01 | 24 | 3500 | 8 | 8 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP1-G3700-01 | 12 | 3700 | 8 | 16 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP2-G3700-01 | 24 | 3700 | 8 | 10 | 40 | 100 | 167x167x213 | 2.25/2.35 |
BP1-G4000-01 | 12 | 4000 | 8 | 16 | 52 | 100 | 167x167x213 | 2.25/2.35 |
BP2-G4000-01 | 24 | 4000 | 8 | 10 | 52 | 100 | 167x167x213 | 2.25/2.35 |

Model | Import/export | N. W | Length x width x height |
Inch | Kg | mm | |
WQ15-12-1.1 | 21/2" | 33 | 260x220x550 |
WQ7-15-1.1 | 2" | 33 | 260x220x550 |
WQ15-15-1.5 | 2" | 37 | 255x205x560 |
WQ15-20-2.2 | 2" | 43 | 260x210x575 |
WQ27-15-2.2 | 21/2" | 46 | 260x210x575 |
WQ25-20-3 | 21/2" | 51 | 305x255x625 |
WQ15-30-3 | 2" | 48.5 | 305x255x625 |
WQ15-32-4 | 2" | 58.5 | 365x265x675 |
WQ25-26-4 | 21/2" | 58.5 | 365x265x675 |
WQ30-22-4 | 3" | 66.5 | 365x265x675 |
WQ25-32-5.5 | 21/2" | 68.5 | 365x265x705 |
WQ30-30-5.5 | 3" | 73 | 365x265x705 |
WQ40-10-2.2 | 3" | 43 | 260x210x575 |
WQ43-13-3 | 3" | 48.5 | 305x255x625 |
WQ60-11-4 | 4" | 62.5 | 365x265x675 |
WQ65-20-7.5 | 4" | 103 | 410x320x765 |
WQ100-12-7.5 | 6" | 103 | 410x320x765 |

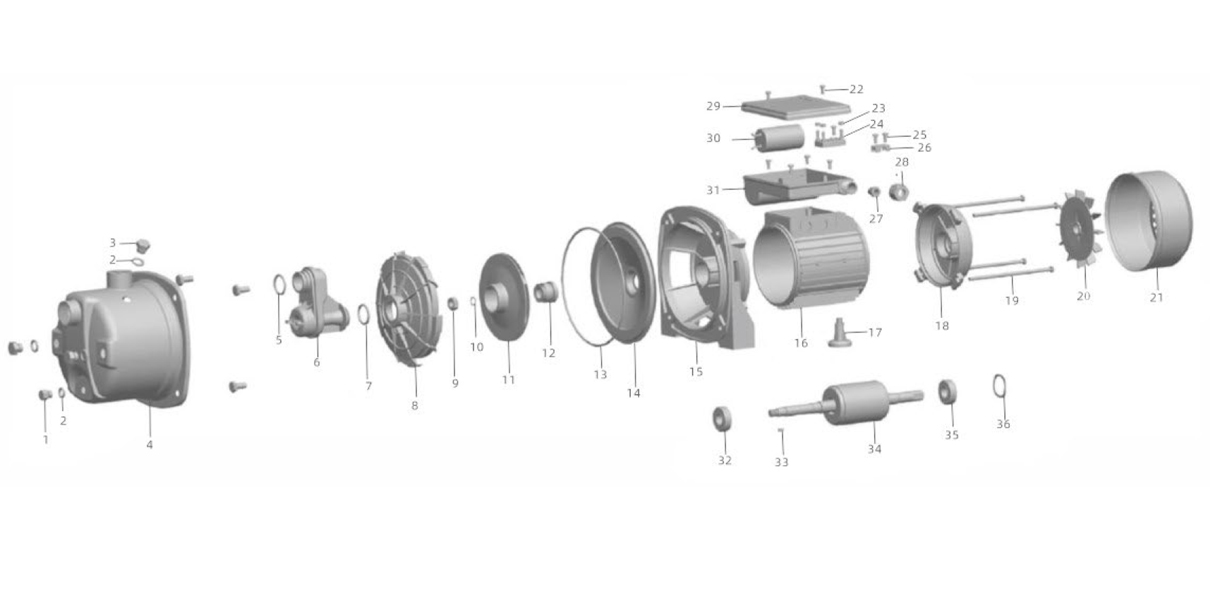

NO. | Parts and components | Materials |
1 | Drain plug | steel |
2 | An "O" ring | rubber |
3 | Injection screw | steel |
4 | Pump casing | steel |
5 | An "O" ring | rubber |
6 | Venturi pipe | PPO |
7 | An "O" ring | rubber |
8 | diffuser | PPO |
9 | nut | steel |
10 | Spring washer | steel |
11 | impeller | Steel/Brass |
12 | Mechanical seal | Ceramic-graphite |
13 | An "O" ring | rubber |
14 | Pump case cover | steel |
15 | Pump support | Cast aluminium |
16 | Housing with wound stator | Cast aluminium |
17 | Stand | Acrylonitrile-butadiene-styrene copolymer plastics |
18 | Drive cover | iron |
19 | Lever | steel |
20 | fan | Polyformaldehyde plastic |
21 | fairlead | steel |
22 | screw | steel |
23 | fairlead | steel |
24 | nut | Assembly |
25 | screw | steel |
26 | Cable clamp | Acrylonitrile-butadiene-styrene copolymer plastics |
27 | fairlead | rubber |
28 | nut | Acrylonitrile-butadiene-styrene copolymer plastics |
29 | Terminal cap | Acrylonitrile-butadiene-styrene copolymer plastics |
30 | condenser | Assembly |
31 | Junction box | Acrylonitrile-butadiene-styrene copolymer plastics |
32 | bearing | Assembly |
33 | Key | steel |
34 | rotor | Assembly |
35 | bearing | Assembly |
36 | Split ring | steel |
