4" Deep Well Pumps 3SK&4SK

4-inch Deep Well Pump

3SK&4SK

● Vortex impeller - high pressure.

● Motor with protector

● Longer working life

● Motor housing with food grade mechanical oil

● Wear-resistance, anti-corrosion

● Safe and no pollotion

    1t9k

    Applications

    ● For pumping clean water with sand content less than 150g/m³

    ● For well pumping, river pumping, farm irrigation, water supply, mining, draiaage in breeding industry.

    Operating conditions

    ● Water temperature up to 35℃

    ● Ambient temperature permissible up to 40℃

    ● 3SK Minimum internal diameter of well: 3"(75mm)

    ● 4SK Minimum internal diameter of well: 4"(100mm)

    ● Maximum immersion depth: 80m

    Motor

    ● Rewindable motor

    ● Insulation Class B

    ● Protection IP68

    ● NEMA dimension standards

    Options on request

    ● Special mechanical seal

    ● Single phase motor with built-in capacitor

    ● Single phase motor with control box

    ● The length of cable: 2 Meter

    ● Outlet dimension : 1"

    Advantages

    1. The built-in features of the frequency conversion system make the installation and use of deep well water pumps easy. There is no need for complicated additional configuration, and its parameters have been preset, which greatly simplifies the installation process and also facilitates subsequent management and maintenance.

    2. The water pump has a soft start function, which can effectively avoid damage to the motor shaft, pump shaft, coupling and impeller during installation. When starting, the current rises steadily and the voltage is stable. This not only reduces the impact on the power grid at the moment the equipment starts, but also reduces the risk of damage to various components of the water pump due to instantaneous large currents, extending the overall service life of the equipment.

    3. Through the frequency increase and speed increase of the frequency conversion system, it doubles the single-stage impeller lift of the pump (up to 25-30 meters), and the effective lift can reach more than 500 meters. In this way, the number of impellers can be reduced and the length of the pump shaft shortened in actual installation, making the water pump run more smoothly and achieving a good anti-sand blocking effect.

    4. The deep well water pump’s self-stop function without water is one of its highlights. When the water in the well is drained, this function can effectively prevent the impeller from being damaged due to dry grinding, directly reducing unnecessary economic losses and maintenance troubles.

    linouuqk
    3SK

    Model

    50Hz

    Motor Power Three Phase Single Phase Q Capacity
    m³/h 0 0.5 1 1.5 2 2.5 3
    380V 220V l/min 0 8 17 25 33 42 50
    HP kW A A Total head in meters
    3SK75 0.75 0.55 2.1 4 Hm 35 29 25 20 15 9.5 6
    3SK100 1 0.75 2.5 5.4 57 48 40 32 25 17 7
    4SK

    Model

    50Hz

    Motor Power Three Phase Single Phase Q Capacity
    m³/h 0 0.5 1 1.5 2 2.5 3.5
    380V 220V l/min 0 8 17 25 33 42 58
    HP kW A A Total head in meters
    4SK100 1 0.75 2.5 6.3 Hm 61 50 39 30 19 10
    4SK150 1.5 1.1 3.4 8.6 99 83 68 54 38 22
    4SK200 2 1.5 4.4 10 140 120 100 81 60 37 3

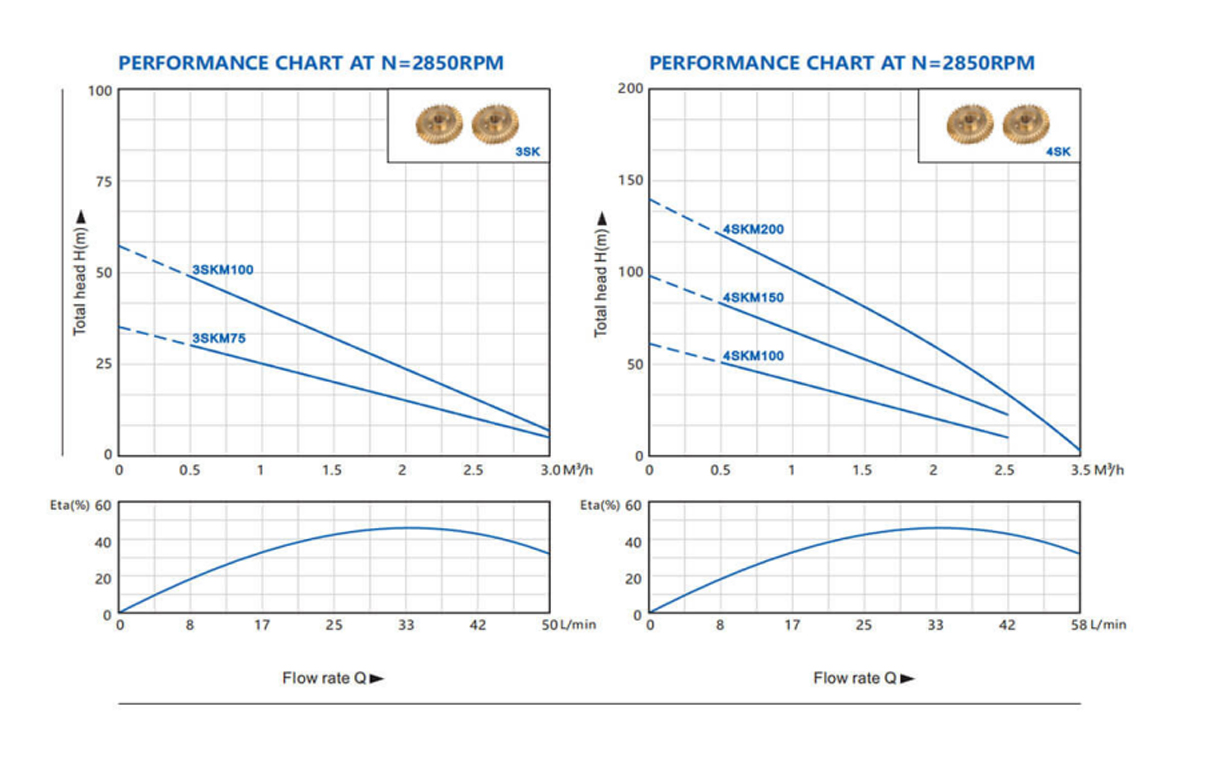

    Performance curveh2b
